ER5356 Marine grade aluminum welding wire

ER5356 aluminum welding wire is a high-quality aluminum-magnesium alloy welding wire specifically designed for the shipbuilding industry. It offers excellent strength and corrosion resistance, maintaining stable performance over the long term in harsh marine environments. Its core composition includes aluminum (balance), magnesium (4.50~5.50%), manganese (0.05~0.20%), and chromium (0.05~0.20%). These elements collectively enhance the mechanical properties and corrosion resistance of the weld joint, ensuring a beautiful weld appearance free from cracking.

5356 welding wire is widely used in shipbuilding applications, such as hull structure connections and repairs, as it effectively matches 5xxx series aluminum-magnesium alloy base metals like 5052 and 5083, forming a strong metallurgical bond and significantly reducing porosity or deformation defects. It is also used in automobiles, aerospace, and chemical equipment, providing lightweight and durable welding solutions.

5356 marine-grade aluminum welding wire is a medium corrosion-resistant, high-strength aluminum-magnesium alloy welding wire with moderate welding difficulty. Its main characteristics include:

  • Performance Advantages: Provides relatively high strength and good ductility, excellent seawater corrosion resistance, attractive anodized finish, and broad compatibility
  • Performance Limitations: More difficult to weld compared to 4043, may be susceptible to stress corrosion cracking in high-temperature environments, and requires caution during heat treatment
  • Cost-effectiveness: Moderately priced with good overall performance, suitable for most marine and offshore engineering applications

With its medium strength, good corrosion resistance, and reasonable price, 5356 marine-grade aluminum welding wire has become one of the mainstream choices in shipbuilding and marine engineering. It is also widely used in automobiles, rail transportation, construction, sports equipment, and other fields.

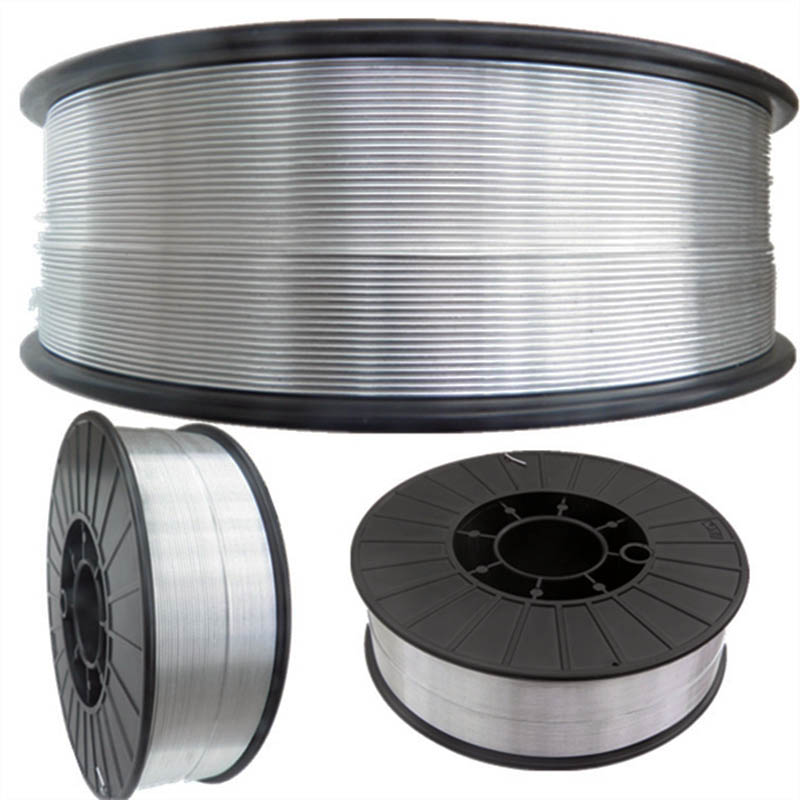

ER5356 Marine grade aluminum welding wire

Features of 5356 Marine Aluminum Welding Wire

marine ER5356 aluminum welding wire Chemical Composition

5356 marine aluminum welding wire is an aluminum-magnesium alloy wire containing 4.5%-5.5% magnesium, with small amounts of titanium (0.06%-0.20%), manganese (0.05%-0.20%), and chromium (0.05%-0.20%).

This chemical composition provides excellent mechanical properties and welding characteristics. Magnesium significantly enhances weld strength and corrosion resistance, while titanium acts as a grain refiner to improve hot crack resistance.

The microstructure of 5356 wire mainly consists of an aluminum matrix with dispersed Mg₂Si strengthening phases, resulting in a good balance of strength and toughness. The addition of chromium further improves corrosion resistance in marine environments.

Alloy 5356
Si ≤0.25
Fe ≤0.4
Cu ≤0.1
Mn 0.05-0.2
Mg 4.5-5.5
Cr 0.05-0.2
Zn ≤0.1
Ti 0.06-0.2
Al Remainder

marine ER5356 aluminum welding wire Mechanical Performance Advantages

5356 marine welding wire offers excellent mechanical properties, with a typical tensile strength of 240-300 MPa, yield strength around 110-140 MPa, and elongation between 15%-25%. These figures far exceed those of common aluminum-silicon welding wires like 4043, making it particularly suitable for high-strength applications.

Compared to other aluminum welding wires, 5356 stands out for its combination of high strength and good ductility. This allows the weld to handle high-stress loads and perform well under impact or vibration. Additionally, its shear strength is nearly 50% higher than that of 4043, which is significant in practical applications.

marine ER5356 aluminum welding wire Welding Process Characteristics

5356 marine welding wire has excellent welding process performance, especially suitable for TIG (tungsten inert gas) and MIG (metal inert gas) welding. During welding, this wire exhibits the following features:

  • Good welding stability: Stable arc burning, minimal spatter, and neat weld appearance
  • Excellent hot crack resistance: Thanks to optimized chemical composition and grain refinement, 5356 has excellent resistance to hot cracking
  • Moderate molten pool fluidity: Although not as fluid as 4043, it is sufficient to ensure good weld formation and fusion
  • Low sensitivity to base material surface condition: Compared to some other aluminum welding wires, 5356 is less sensitive to surface oil and oxide film, reducing the difficulty of pre-weld cleaning

5356 has a melting range of 575-633°C (1060-1175°F) and a density of approximately 2.65 g/cm³, which allows good compatibility with aluminum base materials during welding.

marine ER5356 aluminum welding wire Corrosion Resistance Characteristics

One of the key features of 5356 marine aluminum welding wire is its excellent corrosion resistance, especially in marine environments. This is mainly due to the following factors:

  • High magnesium content: The addition of magnesium significantly improves corrosion resistance, particularly against seawater
  • Uniform microstructure: Titanium refines the grains and reduces defects in the microstructure, enhancing overall corrosion resistance
  • Protective effect of chromium: Chromium addition further strengthens resistance to salt spray and seawater corrosion

5356 welding wire presents a white appearance after anodizing, which is not only aesthetically pleasing but also provides good color matching for the welded joint, making it ideal for aluminum structures requiring surface treatment.

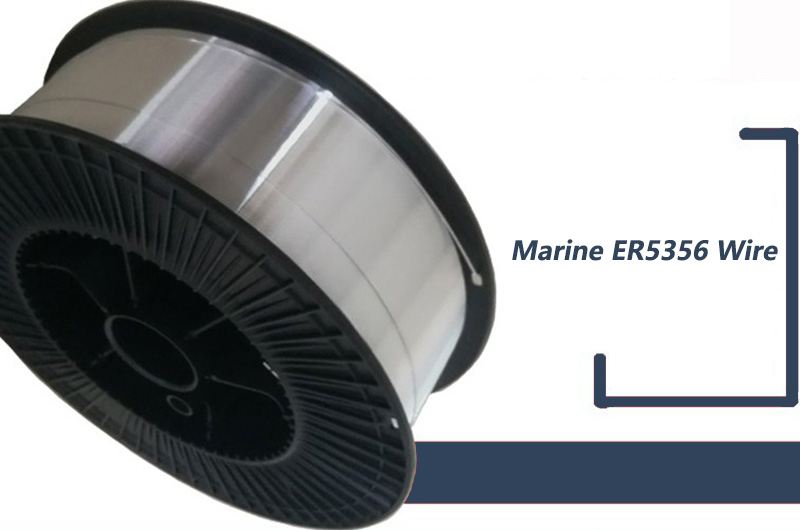

marine ER5356 aluminum wire

Applications of 5356 Aluminum Welding Wire in Marine Fields

5356 Aluminum Welding Wire for Shipbuilding and Repair

The primary application of 5356 marine aluminum welding wire is in the shipbuilding industry, especially for constructing and repairing aluminum ships. Specific applications include:

  • Hull structure welding: Used for joining 5083, 5086, and other 5xxx series aluminum plates commonly used in ship hulls
  • Decks and superstructures: Welding of decks, bulkheads, and superstructure components
  • Interior ship fittings: Welding of various internal aluminum structures and equipment mounts
  • Ship maintenance and retrofitting: Ideal for repairing aluminum structures during regular maintenance and modifications

In shipbuilding applications, 5356 wire provides high-strength, corrosion-resistant welds that perform well in seawater environments, helping extend the service life of welded structures.

5356 Aluminum Welding Wire for Offshore Engineering and Marine Facilities

Beyond conventional shipbuilding, 5356 aluminum welding wire is also widely used in offshore engineering and marine facilities:

  • Offshore platform structures: Welding of aluminum structural components for offshore oil platforms and wind power installations
  • Marine observation equipment: Assembling and securing marine monitoring equipment and buoys
  • Port facilities: Welding of aluminum components in port cranes, dock structures, and boarding ramps
  • Seawater desalination equipment: Used for welding corrosion-resistant aluminum pipes and vessels in desalination systems

These applications take advantage of 5356's excellent seawater corrosion resistance and high strength to ensure long-term reliable performance in marine environments.

5356 Aluminum Welding Wire for Special Vessels and Watercraft

5356 marine aluminum welding wire is also widely used in various special-purpose vessels and watercraft:

  • Speedboats and yachts: Welding of hulls and structural components for aluminum speedboats and luxury yachts
  • Lifeboats and workboats: Reliable welding quality in the manufacturing of lifeboats and port workboats
  • Seaplanes: Used for connecting aluminum structural parts of seaplanes, especially those exposed to water
  • Underwater equipment: Welding of aluminum housings and structural parts for underwater robots and diving equipment

In these applications, lightweight and corrosion resistance are critical, and 5356 welding wire meets these requirements effectively.

Comparison Between 5356 and Other Aluminum Welding Wires

5356 vs. 5183 Aluminum Welding Wire

5183 aluminum welding wire is one of the main alternatives to 5356. Although their chemical compositions and performance are similar, they also have distinct differences:

Chemical Composition Differences

  • 5183 contains 4.3-5.2% magnesium, slightly lower than 5356’s 4.5-5.5%
  • 5183 contains higher manganese (0.5-1.0%), while 5356 has only 0.05-0.20%
  • 5183 usually includes small amounts of zirconium (0.05-0.20%), whereas 5356 contains titanium (0.06-0.20%) as a grain refiner

Mechanical Performance Comparison

  • 5183 has slightly higher strength than 5356, with tensile strength up to 250-310 MPa compared to 5356’s 240-300 MPa
  • Both have similar elongation, ranging from 15% to 25%
  • 5183 shows better stress corrosion resistance in seawater environments

Differences in Application Fields

  • 5183 is commonly used to weld high-strength aluminum alloys like 5083, 5086, 5454, and 5456, especially in shipbuilding
  • In recent years, 5183 has gained more popularity than 5356, especially in environments demanding higher strength
  • 5356 is the most basic aluminum-magnesium welding wire with broader applications, while 5183 is more specialized for high-strength environments

5356 vs. 4043 Aluminum Welding Wire

4043 aluminum welding wire is another commonly used aluminum alloy wire from the aluminum-silicon series and is significantly different from 5356:

Mechanical Performance Comparison

  • 5356 has significantly higher strength than 4043, with tensile strength around 240-300 MPa versus 4043’s 150-200 MPa
  • 5356 also has better ductility, with elongation up to 15-25%, while 4043 ranges from 10-15%
  • 5356 has nearly 50% higher shear strength than 4043, which is important in practical use

Welding Process Performance

  • 4043 has better fluidity, higher crack resistance, is easier to weld, and is less prone to contamination
  • 5356 offers good welding stability but slightly less fluidity and requires higher welding skills
  • 4043 is less sensitive to cracking than 5356, showing fewer cracks in practical applications

Differences in Application Fields

  • 4043 is mainly used for welding 6-series aluminum alloys (such as 6061, 6063) and cast aluminum, while 5356 is mainly used for welding 5-series aluminum alloys (such as 5052, 5083).
  • 4043 is suitable for automotive manufacturing, construction industry, and pressure vessels, while 5356 is more suitable for ships, chemical equipment, and high-strength structures.
  • If the workpiece requires heat treatment after welding, 4043 is recommended; if anodizing is needed, 5356 is the better choice.

Comprehensive Comparison of 5356 and Other Common Aluminum Welding Wires

Welding Wire Model Main Alloy Elements Tensile Strength (MPa) Elongation (%) Main Features Application Fields
5356 Magnesium (4.5-5.5%), Titanium 240-300 15-25 High strength, good corrosion resistance, moderate welding difficulty Ships, marine engineering, pressure vessels, sports equipment
5183 Magnesium (4.3-5.2%), Manganese, Zirconium 250-310 15-25 High strength, excellent seawater corrosion resistance, good weldability High-end ships, offshore platforms, high-strength structures
4043 Silicon (4.5-6.0%) 150-200 10-15 Good fluidity, strong crack resistance, easy to weld, low cost Automotive manufacturing, construction, general aluminum alloy structures
5556 Magnesium (5.0-6.0%), Manganese, Zirconium 260-320 12-20 High strength, excellent corrosion resistance, high welding strength High-strength structures, pressure vessels, nuclear industry
5554 Magnesium (2.4-3.0%), Manganese, Chromium 210-260 15-25 Good corrosion resistance, good stress corrosion resistance Pressure vessels, chemical equipment, ships
4047 Silicon (11.0-13.0%) 160-210 8-12 High fluidity, excellent crack resistance, easy to weld Cast aluminum welding, aluminum casting repair, brazing

5356 ranks moderately high in strength and corrosion resistance, offering good overall performance. Compared to the higher strength 5183 and 5556, 5356 is relatively less expensive and more versatile; compared to 4043, although slightly more difficult to weld, it provides higher strength and better corrosion resistance.

What Other Fields Is 5356 Aluminum Welding Wire Used In?

  • Chemical Equipment and Pressure Vessels Used for welding aluminum alloy pressure vessels storing and transporting corrosive chemicals, reactors, piping systems, heat exchangers, and internal reactor structures.
  • Rail Transit and Vehicle Manufacturing Used for welding aluminum alloy body structures of high-speed trains, subway vehicles, and light rail vehicles, internal locomotive components, lightweight automotive structures, and crash beams.
  • Sports Equipment and Recreational Devices Used for welding bicycle frames, wheels, aluminum motorcycle components, sports gear, recreational facilities, stage equipment, and aluminum templates.
  • Construction and Decoration Fields Used for joining aluminum alloy structural components in buildings, architectural decoration, doors and windows, curtain walls, railings and handrails, as well as interior decorative parts.
  • Power and Electronics Industry Used for welding power equipment, electronic device housings, heat dissipation components, electrical connections, and nuclear power facilities.
  • Aerospace and Defense Industries Used for welding internal aircraft structures, spacecraft components, military equipment, and missile parts.

Precautions for Using 5356 Aluminum Welding Wire

  • Preparation Before Welding Thoroughly remove oil, grease, dust, and oxide film from the welding area; check for oxidation, grease, or other contaminants on the welding wire surface; ensure welding equipment is functioning properly.
  • Welding Process Parameters TIG welding current is typically 80–200A, MIG welding current is typically 120–260A; welding voltage for TIG is 10–20V, for MIG is 18–25V; welding speed is usually 15–30 cm/min.
  • Post-Weld Treatment and Quality Control After welding, remove slag and spatter from the weld surface; be cautious of stress corrosion cracking risks from heat treatment; perform visual inspection, non-destructive testing, and mechanical performance testing.
  • Safety Considerations Ensure good ventilation in the welding area; wear appropriate protective equipment; regularly inspect equipment for safety; store welding wire in a dry and ventilated environment.

Selection Recommendations for 5356 Aluminum Welding Wire

Key Factors in Choosing Welding Wire

  • Base Material Type 5356 is mainly used for welding 5-series aluminum alloys; for 6-series aluminum alloys, 4043 is usually a better choice.
  • Application Environment In marine environments, 5356 and 5183 are preferred; for high-temperature environments, use 5356 with caution.
  • Strength Requirements For structures with general strength requirements, both 5356 and 4043 are viable; for high-strength needs, consider 5183 or 5556.
  • Welding Process For operators with average welding skills, 4043 may be easier to handle; for automated welding, 5356 and 5183 typically perform well.
  • Cost Consideration If the budget is limited, 4043 is a cost-effective option; for high performance demands with sufficient budget, consider 5183 or 5556.

Welding Wire Recommendations for Different Applications

  • Shipbuilding and Marine Engineering For general ship structures, 5356 is recommended; for high-end ships and offshore platforms, consider 5183.
  • Pressure Vessels and Chemical Equipment For general pressure vessels, 5356 is recommended; for high-pressure or high-temperature environments, consider 5554 or 5556.
  • Automotive and Rail Transit For automotive body structures, both 5356 and 5183 can be used; for high-speed train bodies, 5356 or 5183 is recommended.
  • Construction and Decoration For building structures, 5356 and 4043 are both applicable; for decorative purposes, 4043 may be more suitable.
  • Sports Equipment and Recreational Devices For bicycles and sports gear, 5356 is recommended; for water sports equipment, 5356 is also suitable.
