Marine grade single ribbed stiffener aluminum plate sheet
Marine grade single ribbed stiffener aluminum plate is a specially designed aluminum alloy material for shipbuilding, featuring a single rib structure to enhance its strength and rigidity. This type of aluminum plate is commonly used in hulls, decks, and compartments of ships, providing adequate strength and durability while ensuring lightweight.
Marine grade single ribbed stiffener aluminum plate sheet materials
It typically uses high-strength aluminum alloys (such as 5083 or 6061), which possess good corrosion resistance and mechanical strength.
The surface is treated with anodization to enhance corrosion resistance.
Marine grade single ribbed stiffener aluminum plate sheet structural design
The surface of the plate is equipped with a single rib, with the height and width of the rib carefully designed to improve the plate's resistance to bending and twisting.
The arrangement of the ribs can be longitudinal or transverse, depending on the application requirements.
Characteristics of marine grade single ribbed stiffener aluminum plate
- Lightweight: The aluminum alloy material is inherently lightweight, and the single rib design further reduces material usage, lowering the overall weight of the vessel, thus improving speed and fuel efficiency.
- High strength: The addition of a single rib structure on the aluminum plate significantly enhances its resistance to bending and deformation, allowing it to withstand greater external pressure and impacts.
- Corrosion resistance: Aluminum alloys have good corrosion resistance, making them particularly suitable for marine environments, effectively resisting saltwater and other corrosive media.
- Workability: Aluminum materials are easy to process and weld, making them suitable for various manufacturing processes in shipbuilding, facilitating rapid production and assembly.
- Design flexibility: The design of the single rib stiffener can be adjusted according to specific needs to meet the structural requirements and performance specifications of different vessels.
Applications of marine grade single ribbed stiffener aluminum plate sheet
Suitable for lightweight structural components of ships, such as bulkheads, deck supports, etc.
Applicable in situations where weight reduction is needed while maintaining a certain level of strength.
Advantages of marine grade single ribbed stiffener aluminum plate sheet
- Lightweight design, easy to process and install.
- Relatively low cost, suitable for mass production.

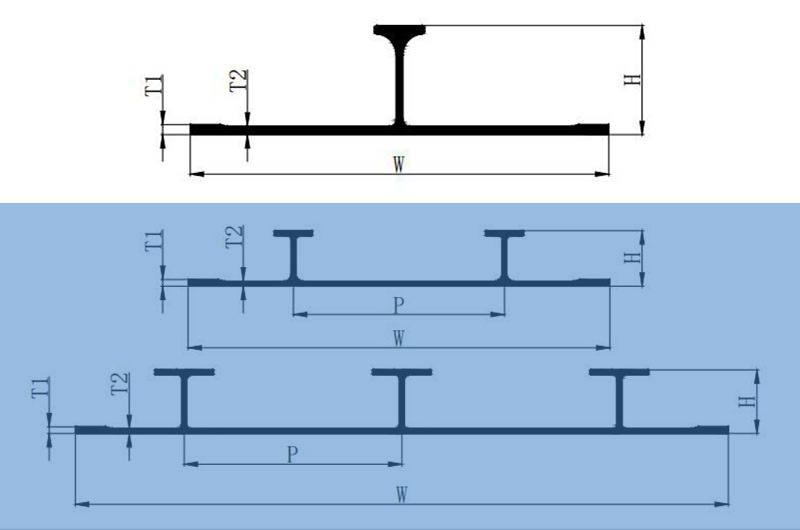

Haomei marine grade single ribbed stiffener aluminum plate sheet stock sizes
| Single stiffener panel | ||||
| T1 | T2 | W | H | L |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 2.8 | 1.8 | 200 | 60 | 12500 |
| 4 | 3 | 250 | 43 | 12500 |
| 300 | 43 | |||
| 400 | 43 | |||
| 5 | 4 | 250 | 64 | 12500 |
| 300 | 54 | |||
| 6 | 5 | 250 | 55 | 12500 |
| 300 | 55 | |||
| 7 | 6 | 250 | 56 | 12500 |
| 300 | 66 | |||
| 8 | 7 | 250 | 57 | 12500 |
| 300 | 67 | |||
| 9 | 8 | 250 | 68 | 12500 |
| 300 | 68 | |||
| 9.6 | 9 | 250 | 59 | 12500 |
