2 bar Marine grade aluminum tread plate

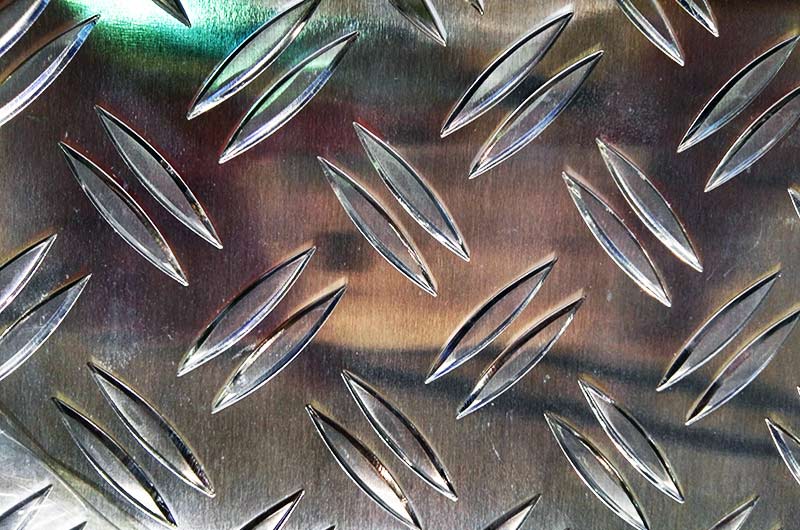

The surface of a 2 bar Marine grade aluminum tread plate is embossed with two raised bars or lines, forming a pattern that resembles a series of parallel ridges. 2 bar pattern provides enhanced grip and traction.

2 bar Marine grade aluminum tread plates are typically made from an alloy containing primarily aluminum and smaller amounts of other elements such as magnesium and manganese. This alloy composition has excellent corrosion resistance and is particularly suitable for marine environments.

2 bar Marine grade aluminum tread plate is highly regarded for its excellent corrosion resistance and strong elasticity. This sheet has excellent corrosion resistance, allowing it to remain stable for long periods of time in environments exposed to corrosive substances. Its unique elastic properties allow it to maintain its shape intact when subjected to external impact or pressure, and is not easily deformed or damaged.

2 bar Marine grade aluminum tread plate

2 bar Marine grade aluminum tread plate features and specifications

  • Thickness: Typically available in various thicknesses from 1.2 mm to 8 mm or more, depending on specific requirements.
  • Width and Length: Standard widths and lengths are available but can often be customized to meet the needs of a specific project.
  • Surface Treatment: The surface is usually milled or may be coated/painted for additional protection and aesthetics.
  • Strength: Marine-grade aluminum tread plate has a high strength-to-weight ratio, making it durable yet lightweight.
  • Corrosion Resistance: Resistant to salt water, chemicals and atmospheric elements, making it ideal for marine applications.
  • Non-slip surface: Raised strips or lines on the surface provide excellent traction, reducing the risk of slips and falls, especially in wet or oily conditions.
  • Easy to maintain: Requires minimal maintenance and can be easily cleaned with water and mild detergent.

Main Alloys of 2 bar Marine grade aluminum tread plate

Marine grade aluminum checkered sheets are often used in marine environments due to their corrosion resistance and durability, often in certain alloys that are well suited for this type of application. The most commonly used alloys for marine grade aluminum checkered plates include:

2 bar 5052 Marine grade aluminum tread plate

Alloy 5052 is widely used in marine applications due to its excellent corrosion resistance, especially in salt water environments. It also has good weldability and formability, making it suitable for a variety of manufacturing processes. Alloy 5052 is known for its high fatigue strength, which is critical for marine structures subjected to constant vibration and stress.

2 bar 5083 Marine grade aluminum tread plate

Another popular choice for marine grade aluminum checkerboard is Alloy 5083. It has excellent resistance to seawater corrosion and is known for its high strength, making it suitable for structural applications in marine environments. Alloy 5083 also has good weldability and formability and can be easily fabricated into a variety of shapes and structures.

These alloys are specifically designed to withstand the harsh conditions encountered in marine environments, including exposure to salt water, UV radiation and mechanical stress. These alloys offer excellent corrosion resistance even in salt water environments, which is critical for long-term durability in marine applications.

2 bar Marine grade aluminum tread plate Advantages

  • Durability: Marine-grade aluminum tread plates are highly durable and resistant to wear and tear, ensuring long-term performance in harsh environments.
  • Corrosion resistance: Its corrosion resistance makes it suitable for marine environments where contact with salt water is required.
  • Safety: Non-slip surfaces provide a secure footing, increasing safety and reducing the risk of accidents.
  • Versatility: Suitable for a wide range of applications beyond marine, providing versatility across a variety of industries.
  • Aesthetics: The unique pattern adds visual appeal to the surface, making it both functional and beautiful.

2 bar marine grade aluminum checkerboard is a versatile and durable material used in marine, transportation and industrial applications. Its corrosion resistance, non-slip surface and durability make it an excellent choice for projects requiring strength, safety and longevity.

Marine aluminum products you may be interested in

  • 5 bar Marine grade aluminum tread plate

    A 5 bar Marine grade aluminum tread plate is an aluminum plate with a patterned surface, featuring five raised bars or lines across the plate,This pattern provides enhanced traction and slip resistance.

  • 5052 marine grade aluminium checkered tread plate sheet

    5052 Marine Grade Aluminum Checkerboard combines superior corrosion resistance, enhanced traction, lightweight construction and versatility, making it ideal for a variety of marine applications where durability and safety are critical.

  • 5083 marine grade aluminium checkered tread plate sheet

    5083 pattern aluminum plate is widely used in decoration, shipbuilding and construction fields. Aluminum pattern plate has good forming, drilling and welding capabilities, is easy to manufacture, and its raised diamond lug pattern provides good slip resistance.

  • 5086 marine grade aluminium checkered tread plate sheet

    5086 marine grade aluminum checkered tread plate sheet has higher strength and corrosion resistance than 5052 and 5083 plates, making it ideal for many marine and marine applications.

  • Marine grade aluminum diamond plate

    Marine grade aluminum diamond plate not only has good anti-skid effect and anti-rust ability, but also has the characteristics of lightweight, which can improve the safety and economy of ships.

2 bar Marine grade aluminum tread plate surface treatment

Polished 2 bar Marine grade aluminum tread plate

This is the basic, natural look of aluminum straight from the factory. It's a bit rough but suitable for a variety of uses such as walkways on boats, deck floors or platforms on marine structures.

Bright 2 bar Marine grade aluminum tread plate

The surface is super smooth, almost mirror-like, and very strong. It reflects approximately 90% of light, making it ideal where strength and beauty are required, such as decorative panels on hulls or ships.

Anodized 2 bar Marine grade aluminum tread plate

This type achieves a stronger, more corrosion-resistant surface through the anodizing process. Plus, it can come in different colors, such as black, gold, or silver, making it not only durable but also decorative. It is ideal for marine applications such as marine accessories, marine equipment or offshore structures that require corrosion protection and aesthetics.

Chemical Composition of 2 bar Marine grade aluminum tread plate

Alloy 5052 5083
Si 0.25 0.4
Fe 0.4 0.4
Cu 0.1 0.1
Mn 0.1 0.40-1.0
Mg 2.2-2.8 4.0-1.0
Cr 0.15-0.35 0.05-0.25
Ni - -
Zn 0.1 0.25
Ti - 0.15
Ga - -
V - -
Each 0.05 0.05
Total 0.15 0.15
Alu Remainder Remainder

2 bar Marine grade aluminum tread plate uses and applications

2 bar 5083 5086 Marine grade aluminum tread plate for Boat Flooring and Decks

Boat Flooring and Deck: Marine grade aluminum checkered panels are widely used for flooring and decking surfaces on ships. Its corrosion resistance ensures a long service life even in harsh salt water environments. The non-slip surface provides stability to crew and passengers, especially in wet conditions.

2 bar 5052 Marine grade aluminum tread plate for Docks and Piers

Piers and Piers: Pier surfaces are frequently exposed to water and weather elements. Aluminum treads provide a durable and safe walking surface for those accessing docks and piers. The anti-slip feature reduces the risk of accidents, especially during loading and unloading activities.

2 bar 5083 Marine grade aluminum tread plate for Marine Structures

Marine Structures: From gangways to steps, marine-grade aluminum treads can be used on a variety of marine structures. They provide a safe footing for workers and visitors, contributing to the overall safety of marine facilities.

Precautions for purchasing 2 bar marine grade aluminum tread plate

  • 1. Aluminum grade: Make sure the aluminum pattern plate is specifically designated as "marine grade" to ensure it is suitable for use in a marine environment. Marine-grade aluminum often contains alloying elements such as magnesium and chromium to enhance corrosion resistance.
  • 2. Thickness and size: Consider the required thickness and size of the pedal based on the intended application. Marine environments can be harsh, so choosing the right thickness is critical for durability and strength.
  • 3. Surface finish: Determine the required surface finish based on application requirements. Options include polished, gloss or anodized finishes, each offering varying degrees of beauty, corrosion resistance and durability.
  • 4. Anti-slip properties: Confirm that the pedals have sufficient anti-slip properties to ensure safety in wet or slippery conditions common in marine environments. The pattern design and depth of the pole should provide adequate traction.
  • 5. Corrosion resistance: Verify the corrosion resistance of aluminum pattern plates, especially in salt water environments. Marine grade aluminum should exhibit excellent corrosion resistance, ensuring longevity and minimal maintenance requirements.
  • 6. Comply with standards: Check whether the aluminum checkered plate complies with relevant industry standards and certifications, such as those set by the International Maritime Organization (IMO) or classification societies such as ABS (American Bureau of Shipping) or DNV (Det Norske Veritas).
  • 7. Cost considerations: Compare prices from different suppliers while considering the overall value proposition, including product quality, durability and long-term performance. Avoid sacrificing quality to reduce upfront costs, as inferior materials may lead to higher maintenance bills or safety risks in the long run.
