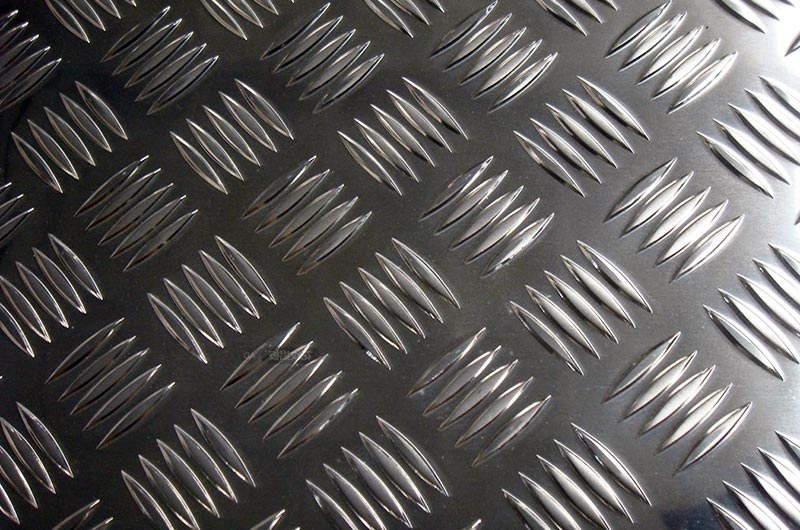

5 bar Marine grade aluminum tread plate

A 5 bar Marine grade aluminum tread plate is an aluminum plate with a patterned surface, featuring five raised bars or lines across the plate. This pattern provides enhanced traction and slip resistance, making it suitable for applications where safety is critical, such as marine environments where surfaces may be wet or slippery.

5 bar Marine grade aluminum tread plate

Main Alloys of 5 bar Marine grade aluminum tread plate

5 bar 5052 Marine grade aluminum tread plate

5052 is known for its excellent corrosion resistance, especially in marine environments.

  • Alloy composition: Mainly composed of aluminum, with magnesium as the main alloy element.
  • Strength: Good strength and excellent corrosion resistance.

5 bar 5083 Marine grade aluminum tread plate

5083 Another corrosion-resistant alloy suitable for marine applications, known for its high strength.

  • Alloy composition: Contains aluminum and magnesium as the main alloying elements and small amounts of other elements such as manganese and chromium.
  • Strength: Excellent strength and outstanding corrosion resistance, especially in marine environments.

How to choose 5 bar Marine grade aluminum tread plate

  • 1. Alloy: Choose an alloy with excellent corrosion resistance and sufficient strength for your application.
  • 2. Thickness: Thicker boards offer more durability but may be heavier.
  • 3. Surface finish: Some boards may be sanded, while others may be coated or painted for extra protection and beauty.
  • 4. Dimensions: Choose the appropriate size and dimensions to meet your specific application requirements.

Common specifications of 5 bar Marine grade aluminum tread plate

Thickness: Typically ranges from 1.2mm to 8mm or more, depending on application.

Width and Length: Standard widths and lengths are available, but custom sizes can also be manufactured to suit specific project needs.

5 bar Marine grade aluminum tread plate uses

Marine grade aluminum tread plate is widely used in various marine environments due to its excellent anti-slip performance, corrosion resistance, and lightweight nature.

1. Flooring and Walkways

The anti-slip surface design of 5 bar marine grade aluminum tread plate is particularly important in industrial environments, especially in areas like walkways, ramps, and stairs. Whether used in internal walkways of a vessel or external ramps, aluminum tread plate provides good traction, reducing the risk of slip accidents. In wet or oily conditions, these anti-slip features are crucial for ensuring the safety of workers and passengers. Additionally, the durability of aluminum tread plates allows them to withstand frequent use and various weather conditions.

2. Deck

As a part of the primary deck of a vessel, 5 bar marine grade aluminum tread plate offers a safe walking area, resistant to seawater erosion and salt mist corrosion. The aluminum material is not only lightweight but also has high strength, making the deck structure sturdier. Its anti-slip design ensures that crew members and passengers can walk safely on unstable sea surfaces. Furthermore, the surface treatment of aluminum tread plates makes them easier to clean, maintaining the deck's cleanliness and safety.

3. Gangways

Gangways serve as important connections between the vessel and the shore or other ships. The application of 5 bar marine grade aluminum tread plate ensures the safety of passengers and crew when boarding and disembarking. Especially in wet environments, the anti-slip features of aluminum tread plates effectively prevent accidental slips. Designed with foot traffic and load capacity in mind, these tread plates can support multiple people's weight while maintaining stability, enhancing the overall safety of the gangway.

4. Ramps

The use of 5 bar marine grade aluminum tread plate on ramps between ships and docks greatly facilitates the loading and unloading of goods. Its lightweight characteristics make the ramp easy to operate and move, while the anti-slip surface ensures that cargo does not slip during handling, reducing the risk of accidents. Additionally, the corrosion resistance and weather resistance of aluminum tread plates perform excellently in marine environments, making them suitable for long-term use.

5. Platforms

The working platforms on vessels are areas for various operations, and aluminum tread plates provide a stable walking surface here. Whether performing maintenance, repairs, or handling cargo, the sturdiness and anti-slip properties of aluminum tread plates ensure the safety of workers. At the same time, the lightweight nature of aluminum enhances the overall flexibility of the platform's structure, making it easier to design and install. The application of aluminum tread plates on platforms not only improves operational efficiency but also reduces potential safety hazards.

Benefits of Choosing 5 Bar Marine Grade Aluminum Treads

  • 1. Enhanced grip: The patterned surface provides excellent grip, reducing the risk of slips and falls, especially in wet or slippery conditions.
  • 2. Corrosion resistance: Marine-grade alloys such as 5052 and 5083 have excellent corrosion resistance, ensuring a long service life in marine environments.
  • 3. Durability: Aluminum is inherently durable and wear-resistant, making it suitable for heavy-duty applications.
  • 4. Lightweight: Despite its strength, aluminum is lightweight, helping improve fuel efficiency in transportation applications.

It offers excellent corrosion resistance even in marine environments exposed to large amounts of salt water. Its raised pattern provides traction and prevents slipping, making it ideal for use on boat decks, docks and other marine structures.

Overall, 5 bar marine grade aluminum treads offer a combination of safety, durability and corrosion resistance, making them a popular choice for marine, transportation and construction applications where slip resistance and longevity are critical.

Chemical Composition of 5 bar Marine grade aluminum tread plate

Alloy 5052 5083
Si 0.25 0.4
Fe 0.4 0.4
Cu 0.1 0.1
Mn 0.1 0.40-1.0
Mg 2.2-2.8 4.0-1.0
Cr 0.15-0.35 0.05-0.25
Ni - -
Zn 0.1 0.25
Ti - 0.15
Ga - -
V - -
Each 0.05 0.05
Total 0.15 0.15
Alu Remainder Remainder

5 bar marine grade aluminum tread plate FAQs

Is 5-pole marine grade aluminum tread plate easy to fabricate and install?

Yes, it can be easily cut, drilled and welded to suit specific applications. It typically comes in standard sheet sizes and thicknesses, but custom sizes can also be ordered to meet specific project requirements.

What maintenance does a 5 bar marine grade aluminum tread plate require?

Due to its corrosion-resistant properties, minimal maintenance is required. Regular cleaning with a mild detergent and water is usually enough to keep it looking its best.

What is the difference between marine grade aluminum pattern plate and standard aluminum pattern plate?

Marine grade aluminum checkerboard is made from a special alloy that offers superior corrosion resistance compared to standard aluminum checkerboard. It is designed to withstand the harsh conditions of the marine environment, including exposure to salt water and moisture.

Can the 5 bar marine grade aluminum tread plate be painted or coated?

Yes, it can be painted or coated for extra protection or aesthetic purposes. However, coatings that are compatible with aluminum and suitable for marine applications must be used to ensure long-lasting performance.
