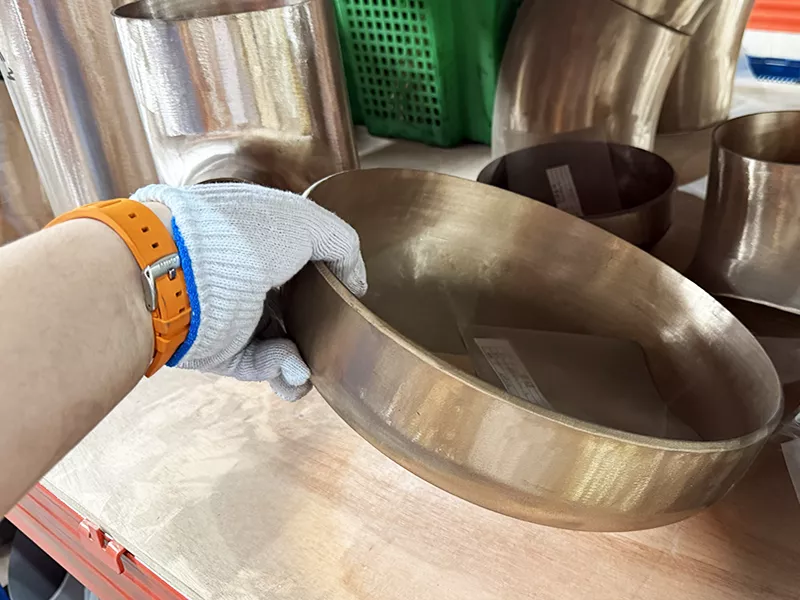

Copper Nickel End Cap

A Copper Nickel End Cap is used to close the end of a copper nickel pipe line, protecting the system during operation, pressure testing, storage, or future extension. In marine and offshore piping, the end cap is more than a simple closure fitting — it must resist seawater corrosion, maintain reliable weld performance, and match the service life of the entire CuNi pipeline.

Copper Nickel End Caps are high-performance pipe fittings engineered for marine, offshore, desalination, and industrial seawater systems. Manufactured from CuNi 90/10 (C70600) and CuNi 70/30 (C71500), these fittings provide exceptional corrosion resistance, biofouling resistance, and long-term durability in harsh marine environments.

Our copper nickel end caps are manufactured from CuNi 90/10 (C70600) and CuNi 70/30 (C71500) alloys, offering excellent resistance to seawater corrosion, biofouling, erosion, and chloride attack.

With extensive manufacturing experience in copper nickel piping components, we provide end caps in standard and custom configurations. Products can be produced according to customer drawings, project specifications, ASTM, ASME, EEMUA, DIN, EN, or other international standards, ensuring compatibility with new installations and maintenance projects.

• Custom dimensions and wall thickness available
• Manufactured according to international standards or drawings

What Is a Copper Nickel End Cap?

A Copper Nickel End Cap, sometimes referred to as a Pipe Cap or Pipe End Closure, is a butt-weld fitting used to seal the open end of a pipe. The cap creates a pressure-tight closure while protecting the piping system from contamination, moisture ingress, and external damage.

The domed design helps distribute internal pressure evenly across the fitting, improving structural integrity and operational safety.

Compared with ordinary carbon steel or stainless steel caps in seawater service, copper nickel end caps provide better long-term corrosion resistance, lower maintenance demand, and good compatibility with CuNi piping systems.

Copper Nickel End Cap Specifications

Custom sizes, special wall thicknesses, and non-standard end caps can be produced based on technical drawings or sample dimensions.

Types of Copper Nickel End Cap

Copper Nickel End Caps (CuNi Butt-Weld Caps) are manufactured according to international marine and industrial standards. The most widely used specifications are DIN 28011 and EEMUA 234, ensuring reliable sealing performance in seawater, offshore, and high-corrosion environments.

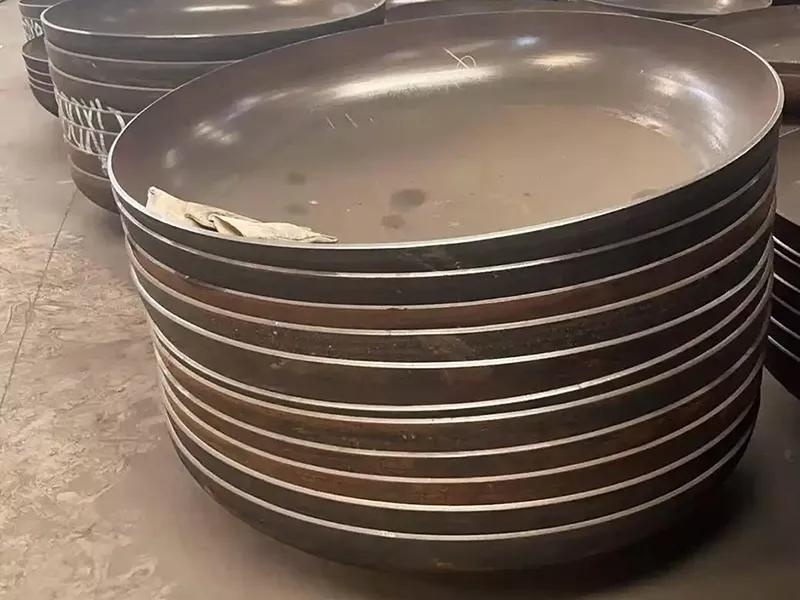

DIN 28011 Copper Nickel End Cap

The DIN 28011 standard defines torispherical-type butt-weld end caps designed for pressure piping systems. These caps are widely used in boilers, desalination plants, heat exchangers, and marine pipelines.

• Standard: DIN 28011 / EN equivalent forming geometry
• Material: CuNi 90/10 (C70600), CuNi 70/30 (C71500)
• Application: seawater cooling, offshore piping, industrial pressure lines
• Feature: optimized stress distribution for high-pressure performance

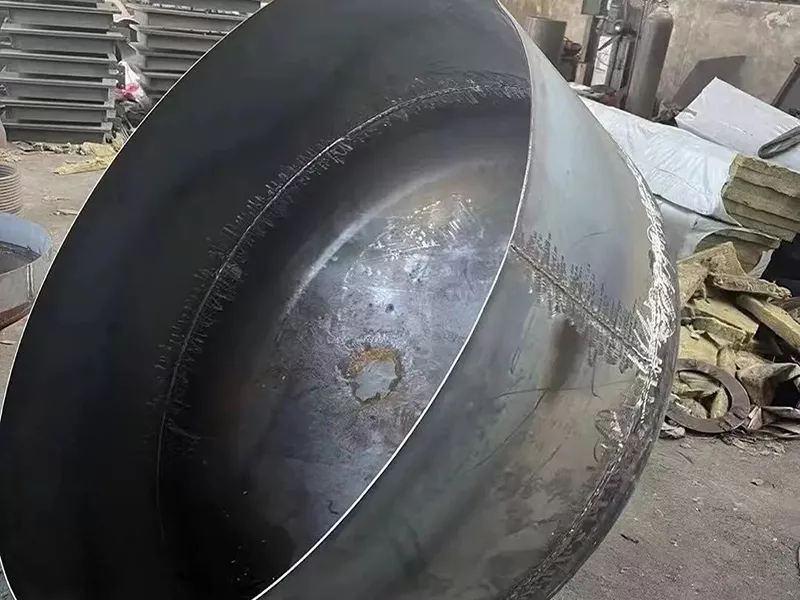

EEMUA 234 Copper Nickel End Cap

EEMUA 234 specifies copper nickel piping components for offshore and marine applications. End caps are based on DIN 28011 geometry but adapted for 16–20 bar seawater systems.

• Standard: EEMUA Pub. No. 234
• Design Pressure: up to 16–20 bar (depending on temperature)
• Material: CuNi 90/10, CuNi 70/30
• Application: shipbuilding, offshore platforms, seawater systems

Both DIN 28011 and EEMUA 234 copper nickel end caps are designed for corrosion resistance in seawater environments. They ensure long service life, excellent weldability, and stable performance in critical marine and industrial systems.

Copper Nickel End Cap Dimensions and Stock

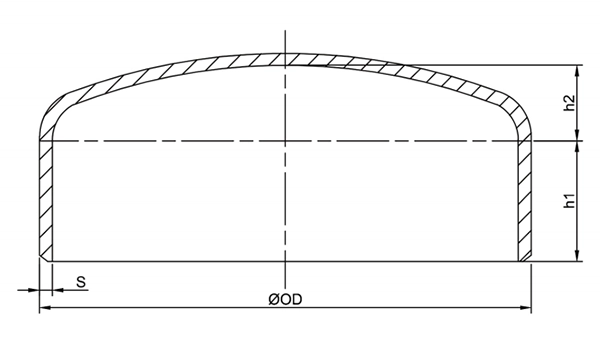

Dimension Definitions

• ØOD Outside diameter of the copper nickel end cap.
• S Nominal wall thickness matching the connected pipe.
• h1 Straight flange length used for butt-welding and installation.
• h2 Crown height measured from the tangent line to the apex of the cap.

Note: Actual dimensions may vary depending on DIN 28011, EEMUA 234, ASTM, EN, or customer-specific requirements. Custom dimensions are available upon request.

Common Applications of Copper Nickel End Cap

The Copper Nickel End Cap is commonly specified in piping systems where durability and seawater performance are critical. Its stability in aggressive marine environments makes it a reliable choice across a wide range of industries.

• Shipbuilding, ship repair, and marine retrofit projects
• Offshore oil and gas production platforms
• Seawater cooling and circulation systems
• Firewater main and emergency piping networks
• Ballast water and bilge piping systems
• Desalination and reverse osmosis facilities
• Power station cooling water pipelines
• Heat exchanger inlet and outlet connections
• Marine engineering and coastal infrastructure works
• Chemical processing and coastal industrial plants

In seawater, brine, and high-humidity coastal environments, copper nickel end caps are often selected for their long-term resistance to corrosion, mechanical reliability, and reduced maintenance requirements. These properties help maintain stable system performance even under continuous marine exposure.

Quality Assurance & Inspection for Copper Nickel End Caps

Quality is a critical factor for copper nickel piping components used in marine, offshore, desalination, power generation, and seawater service applications. Every Copper Nickel End Cap is manufactured and inspected according to the applicable international standards, customer specifications, and project requirements before delivery.

Our quality control procedures are implemented throughout the production process, from raw material verification to final packing inspection, ensuring dimensional accuracy, material integrity, and long-term service reliability in demanding environments.

Independent third-party inspection services such as SGS, BV, DNV, TUV, ABS, LR, and other authorized agencies can also be arranged according to contract requirements.

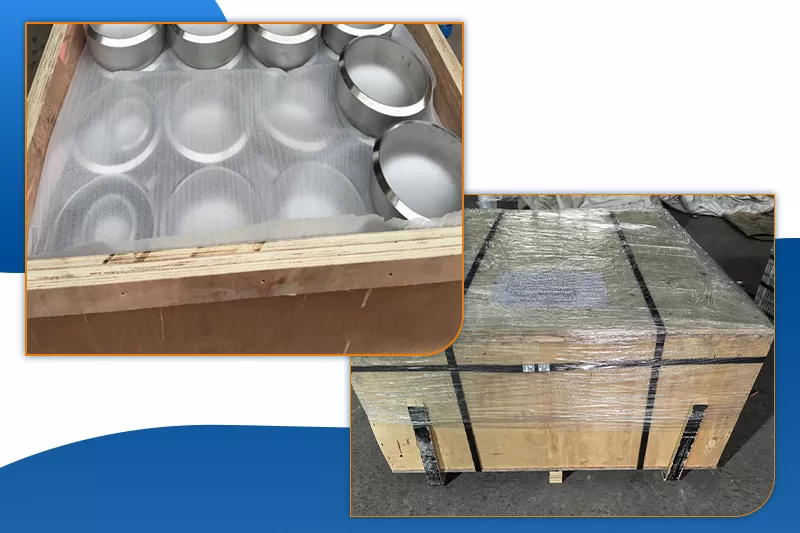

Packaging and Delivery of Copper Nickel End Caps

Packaging methods are selected according to product size, weight, shipping destination, and customer requirements. Small and medium-sized end caps are commonly packed in fumigation-free wooden cases, while larger dimensions are securely arranged on wooden pallets with protective wrapping and reinforced strapping for safe transit.

For export projects, additional moisture-resistant materials, plastic protection covers, and seaworthy packing solutions can be provided to ensure the products arrive in excellent condition after long-distance ocean transportation.

Each package is clearly labeled for easy identification and traceability, including:

• Product description
• Material grade (CuNi 90/10 C70600 or CuNi 70/30 C71500)
• Nominal size and wall thickness
• Quantity
• Heat number and batch information
• Purchase order or project reference number

We can also provide customized packaging, private labeling, and special export documentation according to project specifications, helping simplify receiving, inspection, and installation procedures at the job site.

Why Copper Nickel End Caps Are Preferred for Marine Piping Systems

Selecting the right pipe end closure is critical for the long-term performance of seawater and offshore piping networks. Compared with carbon steel, galvanized steel, and many conventional alloy fittings, Copper Nickel End Caps provide superior durability in harsh marine environments where corrosion, biofouling, and continuous seawater exposure are major concerns.

Copper Nickel 90/10 vs 70/30 End Cap

Copper nickel end caps are commonly supplied in two main grades: CuNi 90/10 C70600 and CuNi 70/30 C71500. Both materials offer excellent resistance to seawater corrosion and are widely used in marine piping systems, shipbuilding, offshore projects, and heat exchanger applications.

In general, CuNi 90/10 end caps are ideal for standard marine service, while CuNi 70/30 end caps are better suited for more severe operating conditions. If you are not sure which grade to choose, we can recommend the right material based on your pipe size, pressure rating, medium, and project requirements.

Why Choose Our Copper Nickel Pipe Fittings?

As a manufacturer of copper nickel pipe fittings, we supply CuNi end caps, elbows, tees, reducers, stub ends and other fittings for marine, offshore and industrial piping systems. Our products are commonly used in seawater pipelines, shipbuilding, desalination plants, heat exchangers and chemical processing projects where corrosion resistance and long service life are important.

We work with commonly specified copper nickel grades such as 90/10 and 70/30, and can produce fittings according to your required standard, drawing or project specification. Each order is checked carefully for size, wall thickness, material grade, pressure requirements and application before production.

From raw material inspection to forming, machining, heat treatment, surface finishing and final testing, we follow strict quality control procedures to keep every batch consistent. Material certificates, inspection reports and other technical documents can be provided to support your project approval and delivery requirements.

Whether you need standard CuNi pipe caps from stock or custom-made copper nickel fittings for a specific piping layout, our team can offer practical manufacturing support, stable lead times and flexible order quantities. Send us your size list, drawings, material grade, standard and quantity, and we will review the details and provide a suitable quotation for your project.

FAQ – Copper Nickel End Cap
