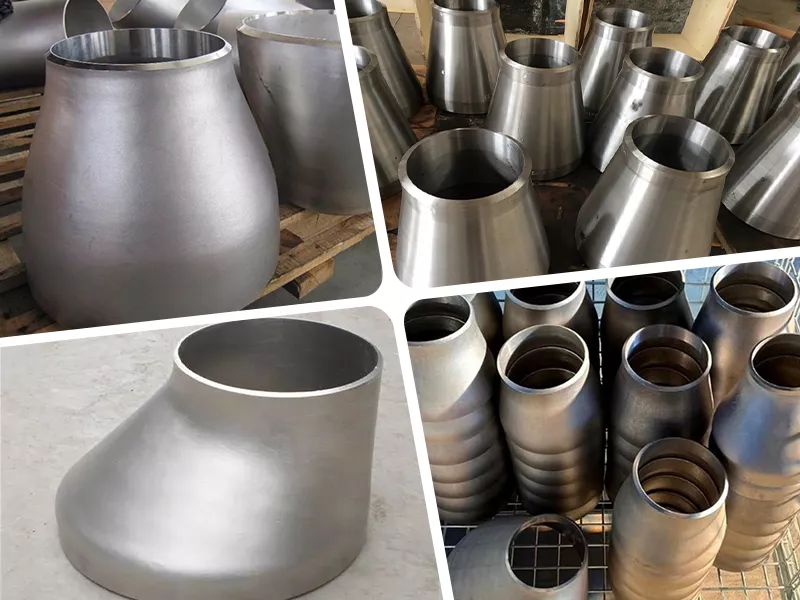

Copper Nickel Reducer
Copper Nickel Reducers are essential butt weld fittings designed to connect pipes of different diameters while maintaining efficient flow characteristics and superior corrosion resistance. Manufactured from Copper Nickel 90/10 (C70600) and Copper Nickel 70/30 (C71500), these reducers are widely used in marine engineering, offshore platforms, seawater cooling systems, desalination plants, and naval construction projects.
Available in both Concentric Reducer and Eccentric Reducer designs, Copper Nickel Reducers provide smooth flow transitions while maintaining long-term reliability in aggressive seawater environments.
We supply copper nickel pipe reducers in both Concentric reducer and Eccentric reducer designs, manufactured according to international standards such as DIN 86089, EEMUA 234 and ASME B16.9. Custom dimensions and project-based specifications are also available upon request.
Copper Nickel Reducer Specifications
| Parameter | Description |
|---|---|
| Product Name | Copper Nickel Reducer |
| Type | Concentric Reducer / Eccentric Reducer |
| Material | CuNi 90/10, CuNi 70/30 |
| Standards | DIN 86089, EEMUA 234, ASME B16.9 |
| Manufacturing Method | Seamless / Welded |
| Size Range | DN15 – DN500 |
| Pressure Rating | 10 Bar, 16 Bar, 20 Bar |
| Connection | Butt Weld |
| Surface Finish | Pickled, Cleaned, Degreased |
| Inspection | PMI, Dimensional Inspection, Hydrostatic Testing |
Types of Copper Nickel Reducers
Copper Nickel Concentric Reducer
A Concentric reducer has a symmetrical cone shape, with the centerline of the large end and small end aligned. It is commonly used in vertical piping systems or applications where maintaining the same pipe centerline is important.
Advantages
- Uniform fluid flow transition
- Reduced turbulence and pressure drop
- Suitable for vertical piping systems
- Easy installation and alignment
- Excellent performance in seawater service
Copper Nickel Eccentric Reducer
An Eccentric reducer has an offset centerline, which means one side of the reducer remains flat. This design is often used in horizontal piping systems to prevent air pockets or liquid accumulation.
Advantages
- Prevents air pockets in liquid lines
- Avoids liquid accumulation in gas systems
- Improves pump suction efficiency
- Reduces cavitation risk
- Optimizes fluid transport performance
Copper Nickel Reducer Standards and Specifications
Haomei manufactures copper nickel reducers in accordance with internationally recognized piping standards for marine, offshore, naval, desalination, and industrial fluid handling systems. Depending on project specifications, reducers can be supplied as concentric reducers or eccentric reducers with dimensional tolerances and welding preparations that comply with the required standard.
DIN 86089 Copper Nickel Reducer
DIN 86089 is one of the most commonly specified standards for copper nickel butt weld fittings used in shipbuilding and marine engineering. Reducers manufactured to DIN 86089 are designed for seawater cooling systems, ballast lines, fire-fighting pipelines, and other onboard piping networks where corrosion resistance and long service life are critical.
Available in both concentric and eccentric configurations, DIN 86089 copper nickel reducers are widely selected for commercial vessels, naval ships, offshore support vessels, and marine infrastructure projects.
EEMUA 234 Copper Nickel Reducer
EEMUA 234 provides engineering guidance for copper nickel piping systems operating in aggressive seawater environments. This specification is frequently referenced in offshore oil and gas platforms, FPSOs, desalination facilities, and coastal industrial installations.
Copper nickel reducers produced according to EEMUA 234 offer excellent resistance to seawater corrosion, biofouling, erosion, and flow-induced attack, making them suitable for demanding applications requiring high reliability and reduced maintenance costs.
ASME B16.9 Copper Nickel Reducer
ASME B16.9 covers factory-made wrought butt welding fittings and is widely accepted across international piping projects. Copper nickel reducers manufactured to ASME B16.9 provide standardized dimensions, smooth flow transitions, and dependable weldability for process and utility piping systems.
ASME B16.9 copper nickel concentric reducers and eccentric reducers are commonly used in power generation facilities, shipbuilding projects, offshore platforms, seawater treatment plants, and industrial piping networks requiring global specification compliance.
In addition to DIN 86089, EEMUA 234, and ASME B16.9, custom copper nickel reducer dimensions, wall thicknesses, and alloy grades including CuNi 90/10 (C70600) and CuNi 70/30 (C71500) can be manufactured according to project drawings and client specifications.
Copper Nickel Reducer Material Grades
Copper nickel reducers are primarily manufactured in two internationally recognized alloys: Copper Nickel 90/10 (UNS C70600) and Copper Nickel 70/30 (UNS C71500). Both grades provide excellent resistance to seawater corrosion, biofouling, and erosion, making them widely used for marine piping systems, offshore platforms, shipbuilding projects, desalination plants, and heat exchanger installations. The selection of the appropriate alloy depends on operating conditions, flow velocity, design pressure, and project specifications.
Copper Nickel 90/10 Reducer (UNS C70600)
Copper Nickel 90/10 is the most commonly specified material for commercial marine and industrial seawater piping systems. It offers an excellent balance between corrosion resistance, mechanical properties, and cost efficiency.
- Copper (Cu): Balance
- Nickel (Ni): 9.0–11.0%
- Iron (Fe): 1.0–1.8%
- Manganese (Mn): 0.5–1.0%
Advantages of CuNi 90/10 Reducers
- Outstanding resistance to seawater corrosion and marine atmosphere exposure
- Excellent resistance to biofouling and microbiological attack
- Good formability and weldability for fabrication projects
- Lower material cost compared with CuNi 70/30 alloys
- Long service life in cooling water and ballast water systems
Typical Applications
Copper Nickel 90/10 reducers are widely used as Copper Nickel Reducers in commercial shipbuilding, seawater cooling systems, ballast water pipelines, fire protection networks, condensers, and heat exchanger installations.
Copper Nickel 70/30 Reducer (UNS C71500)
Copper Nickel 70/30 contains a higher nickel content, providing superior mechanical strength and enhanced resistance to erosion-corrosion under high-flow seawater conditions. This grade is frequently specified for offshore and naval engineering projects where reliability is critical.
- Copper (Cu): Balance
- Nickel (Ni): 29.0–33.0%
- Iron (Fe): 0.4–1.0%
- Manganese (Mn): 0.5–1.0%
Advantages of CuNi 70/30 Reducers
- Superior resistance to erosion-corrosion in turbulent seawater systems
- Higher tensile strength and pressure-bearing capability
- Excellent durability at elevated flow velocities
- Outstanding resistance to cavitation damage
- Preferred material for critical offshore and naval applications
Typical Applications
Copper Nickel 70/30 reducers are preferred Copper Nickel Reducers for offshore platforms, naval vessels, desalination plants, FPSO facilities, and demanding seawater piping applications operating under high flow conditions.
CuNi 90/10 vs CuNi 70/30 Reducers
| Property | CuNi 90/10 (C70600) | CuNi 70/30 (C71500) |
| Corrosion Resistance | Excellent | Superior |
| Erosion Resistance | Very Good | Excellent |
| Mechanical Strength | Good | Higher |
| Cost | More Economical | Premium Grade |
| Main Applications | Commercial Marine Systems | Offshore & Naval Projects |
Our Copper Nickel Reducers are available as Concentric Reducers and Eccentric Reducers, manufactured according to DIN 86089, EEMUA 234, and ASME B16.9 standards. Custom dimensions, wall thicknesses, and project-specific requirements can also be supplied for marine, offshore, and industrial piping systems.
Why Choose Copper Nickel Reducers for Marine Piping Systems?
Copper nickel reducers are widely specified for seawater piping, offshore platforms, shipbuilding projects, desalination plants, and heat exchanger systems. Their unique combination of corrosion resistance, mechanical strength, and long-term reliability makes them one of the most trusted materials for demanding marine environments.
Superior Seawater Corrosion Resistance
Copper nickel alloys provide exceptional protection against seawater corrosion, salt spray, and chloride attack, ensuring reliable service in marine piping systems.
Natural Anti-Biofouling Properties
The alloy surface inhibits the attachment of algae, barnacles, and marine organisms, helping maintain flow efficiency and reducing cleaning requirements.
Long-Term Service Reliability
Copper nickel reducers offer excellent durability and stable performance under continuous exposure to aggressive offshore and coastal environments.
Excellent Fabrication and Weldability
Suitable for welding, forming, and fabrication processes, allowing easy integration into new construction and maintenance projects.
Reduced Lifecycle Costs
Lower maintenance requirements, fewer replacements, and extended service life help reduce the total cost of ownership throughout the project lifecycle.
Trusted for Critical Marine Applications
Widely used in naval vessels, commercial ships, offshore oil and gas platforms, desalination plants, and seawater cooling systems worldwide.
Copper Nickel Reducer Applications
Designed for demanding marine and industrial environments, our piping solutions are widely used in seawater handling, cooling, safety, and offshore utility systems where corrosion resistance, durability, and long service life are essential.
- Shipbuilding and Naval Vessels — suitable for seawater pipelines, auxiliary systems, engine room services, and other critical onboard applications.
- Offshore Oil & Gas Platforms — used in harsh offshore conditions for utility water, process support, and corrosion-resistant piping networks.
- Seawater Cooling Systems — ideal for heat exchangers, intake lines, discharge lines, and continuous seawater circulation systems.
- Desalination Plants — applied in seawater intake, pre-treatment, brine discharge, and related high-corrosion areas.
- Marine Firefighting Networks — supports reliable firewater distribution systems on ships, offshore platforms, terminals, and coastal facilities.
- Ballast Water Treatment Systems — compatible with ballast water transfer, treatment, and discharge pipelines in commercial and marine vessels.
- Power Plant Cooling Circuits — used in coastal and thermal power plants for cooling water intake, circulation, and discharge systems.
- LNG Facilities — suitable for seawater utilities, cooling systems, firewater lines, and supporting infrastructure in LNG terminals.
- Offshore Utility Systems — engineered for general service pipelines, drainage, seawater supply, and other offshore platform utilities.
Why Choose Our Copper Nickel Reducers
For seawater, shipbuilding and offshore piping systems, a reducer is not just a connecting fitting — it must perform reliably under pressure, vibration and long-term corrosion exposure. Our Copper Nickel Reducers are manufactured with controlled material quality, accurate end preparation and strict dimensional inspection to support safe and efficient pipe transitions in demanding marine environments.
We supply both concentric copper nickel reducers and eccentric copper nickel reducers in commonly used CuNi grades such as 90/10 and 70/30. Each reducer can be produced according to project requirements, including ASME B16.9, DIN 86089, EEMUA 234 and customer-specific drawings.
From raw material traceability to final packing, every order is handled with attention to the details that matter on site: correct wall thickness, smooth weld ends, consistent ovality and clear marking. Material certificates, inspection reports and third-party testing can be provided when required by your project specification.
Whether you are sourcing copper nickel pipe fittings for a newbuilding vessel, offshore platform, desalination plant or seawater cooling system, our team can help you select the right reducer size, standard and material grade based on your drawings, operating conditions and delivery schedule.

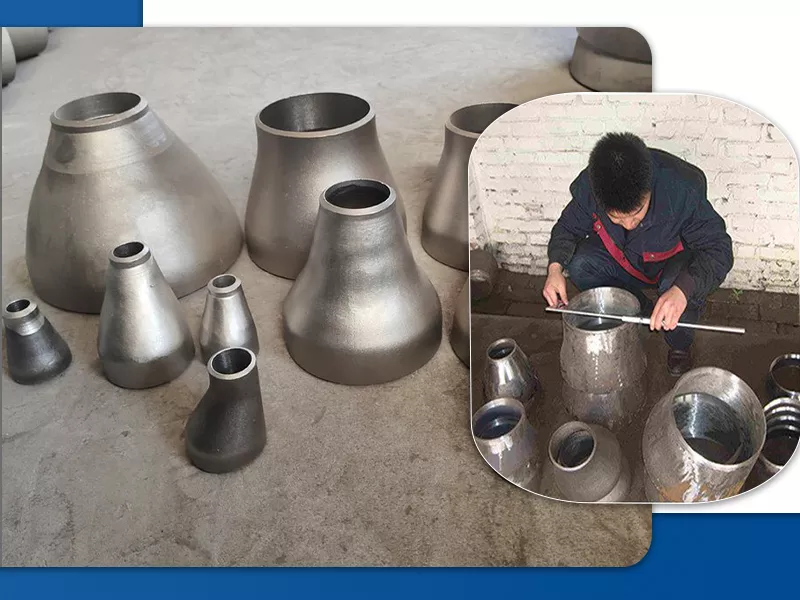

Quality Assurance & Inspection of Copper Nickel Reducers
Every Copper Nickel Reducer is manufactured and inspected in accordance with international piping standards and project specifications. Our quality control process ensures dimensional accuracy, material traceability, and long-term performance in marine, offshore, shipbuilding, desalination, and industrial piping systems.
Prior to shipment, each reducer can undergo comprehensive inspection procedures, including:
- Raw Material Certificate Verification (EN 10204 3.1 / 3.2)
- Dimensional Inspection and Tolerance Check
- Wall Thickness Measurement
- Visual Surface Examination
- Positive Material Identification (PMI) Testing
- End Bevel and Welding Preparation Inspection
- Marking and Traceability Verification
- Packaging and Export Compliance Inspection
Additional testing and third-party inspections by organizations such as SGS, BV, DNV, ABS, LR, and TÜV can be arranged upon customer request to meet project-specific quality requirements.
Request a Quote for Copper Nickel Reducers
Looking for reliable Copper Nickel Reducers for marine, offshore, shipbuilding, or seawater piping systems? To receive an accurate quotation and technical recommendation, please provide the following information:
- Material grade: CuNi 90/10 (C70600) or CuNi 70/30 (C71500)
- Reducer type: Concentric Reducer or Eccentric Reducer
- Manufacturing standard: DIN 86089, EEMUA 234, ASME B16.9, or custom specification
- Large end and small end dimensions
- Wall thickness, pipe schedule, or pressure rating
- Required quantity
- Inspection, testing, or certification requirements
Our engineering team can assist with material selection, dimensional confirmation, and compliance with project specifications. Custom copper nickel reducers can be manufactured according to drawings and international marine standards.
Need a Fast Quotation?
Send your requirements today and receive professional technical support, competitive pricing, and delivery information from our copper nickel piping specialists.
- CuNi 90/10 & CuNi 70/30 Available
- DIN 86089, EEMUA 234 & ASME B16.9
- Custom Sizes & Drawings Accepted
- Mill Test Certificates (MTC EN10204 3.1)
- Worldwide Shipping
FAQ – Copper Nickel Reducer
What is a Copper Nickel Reducer used for?
A Copper Nickel Reducer is used to connect two pipes with different diameters. It is commonly installed in seawater, marine, offshore, and cooling water piping systems.
What is the difference between a Concentric Reducer and an Eccentric Reducer?
A Concentric Reducer has both pipe ends on the same centerline, while an Eccentric Reducer has an offset centerline. Concentric reducers are typically used in vertical piping systems, whereas eccentric reducers are preferred for horizontal pump suction lines.
Can you supply Copper Nickel Reducers according to DIN 86089?
Yes. We can manufacture Copper Nickel Reducers according to DIN 86089, EEMUA 234, ASME B16.9, and custom project drawings.
Do you supply Copper Nickel End Caps as well?
Yes. Besides Copper Nickel Reducers, we also supply Copper Nickel End Caps, elbows, tees, flanges, and other copper nickel pipe fittings for complete marine piping systems.
Which material should I choose, CuNi 90/10 or CuNi 70/30?
CuNi 90/10 is suitable for most marine applications and provides an excellent balance of performance and cost. CuNi 70/30 offers higher strength and superior corrosion resistance for demanding offshore environments.
Are Copper Nickel Reducers suitable for seawater systems?
Yes. Copper Nickel alloys were specifically developed for seawater service and are widely used in marine, offshore, desalination, and cooling water systems due to their outstanding corrosion resistance.
