What Are The Marine Aluminum Welding Processes
Last Updated :
Marine aluminum welding processes typically include a variety of methods tailored to the specific needs and challenges of aluminum processing in the marine environment.
Some common welding processes used in marine aluminum fabrication and repair include:
MIG Welding Marine Aluminum
Gas Metal Arc Welding (GMAW): Also known as MIG (Metal Inert Gas) welding, this process uses consumable wire and a shielding gas to protect the weld pool from atmospheric contamination. Due to its versatility and relatively simple setup, GMAW is commonly used for aluminum welding.
Aluminum alloys 5000 series (e.g. 5052, 5083, 5086) are commonly used for GMAW welding in marine applications due to their excellent corrosion resistance, weldability and strength.
TIG Welding Marine Aluminum
Gas Tungsten Arc Welding (GTAW): Also known as TIG (tungsten inert gas welding), this process uses a non-consumable tungsten electrode and a shielding gas. GTAW produces high-quality, precise welds, often for thin aluminum sheets or where a high degree of control is required.
Aluminum alloy 5000 series and 6000 series (such as 6061, 6063) are commonly used for GTAW welding. These alloys offer good weldability and a balance of strength and corrosion resistance suitable for marine environments.
FCAW Welding Marine Aluminum
Flux-cored arc welding (FCAW): This process is similar to GMAW, but uses a tubular wire filled with flux rather than a solid wire. FCAW is beneficial for outdoor welding or when working on thicker materials that require better penetration.
Similar to GMAW, aluminum alloy 5000 series is often used with FCAW as it is compatible with this welding process and suitable for marine applications.
4043 Welding Marine Aluminum

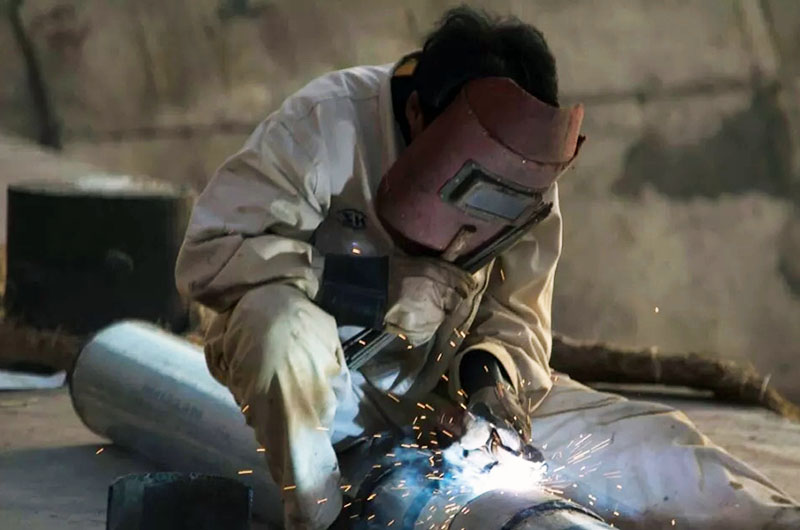

Shielded Metal Arc Welding (SMAW): Also known as stick welding, this process uses consumable electrodes coated with flux. Although aluminum welding is not as common as other processes, SMAW can still be used effectively in certain applications, especially in repair work.
4043 aluminum alloy is often used in arc welding due to its good weldability and resistance to hot cracking. Although not commonly used in marine applications, it can still be used for certain welding tasks.
Marine aluminum products you may be interested in
FSW Welding Marine Aluminum
Friction stir welding (FSW): This is a solid-state joining process that uses frictional heat and mechanical pressure to create a weld between two pieces of metal. FSW is commonly used in marine applications where high strength and minimal deformation are required.
Aluminum alloys such as 5000 series and 6000 series are commonly used for FSW in marine applications. These alloys offer high strength and excellent corrosion resistance, making them ideal for marine environments.
Laser Welding Marine Aluminum
Laser Beam Welding (LBW): LBW uses a highly focused laser beam to melt and join aluminum parts. This is a precise, fast welding process suitable for thin materials and complex geometries. However, it is less commonly used in marine welding due to equipment cost and complexity.
Laser welding technology has a series of advantages such as concentrated heat input, small deformation of the workpiece, fast welding speed, and good processing quality. The application of laser manufacturing technology in the shipbuilding industry will definitely shorten the shipbuilding cycle and improve and stabilize the quality of shipbuilding.
The weld forming of 5083 alloy is greatly affected by welding conditions, laser parameters and shielding gas composition, which is mainly reflected in the forming quality. In the case of penetration welding, the stability of the laser welding process is poor.
The CO2 laser filler wire welding method was used to achieve fillet welding of 6mm thick 5083 marine aluminum alloy T-shaped parts. The incident angle and action position of the laser beam, as well as the matching of welding speed and wire feeding speed, have a great influence on the formation of fillet welds in T-shaped components. Under optimized parameters, satisfactory weld formation can be obtained by welding 6mm thick plates. Welcome to leave a message below to inquire about the price of marine aluminum plates.
The choice of alloy may vary based on factors such as the specific requirements of the marine structure, the welding process used and considerations related to strength, corrosion resistance and cost. Additionally, selecting the correct filler metal is critical to achieving good welds and maintaining the integrity of aluminum structures in marine environments.
Each of these welding processes has its advantages and limitations, and the choice depends on factors such as the thickness of the aluminum, the quality of the weld required, accessibility, and the specific requirements of the marine application. Additionally, proper preparation and cleaning of aluminum surfaces is critical to achieving high-quality welds in marine environments, where corrosion resistance is critical.
