5052 Aluminum Tube

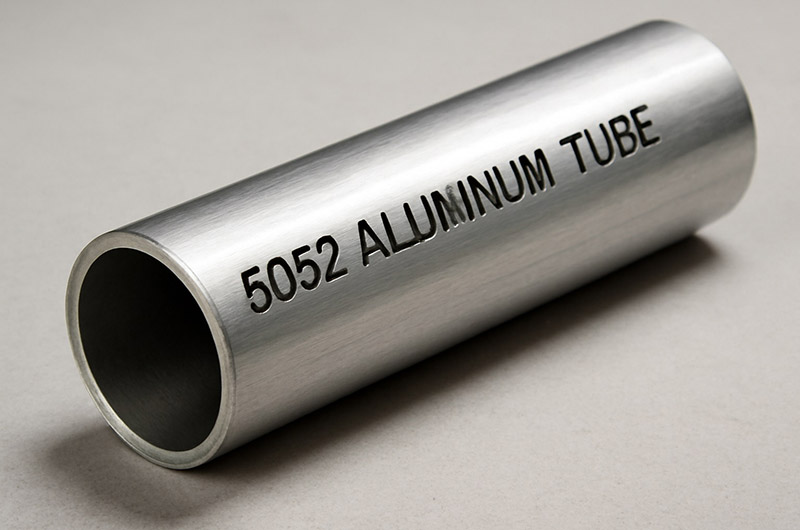

5052 Aluminum Tube is a rust-resistant aluminum alloy tube made primarily from aluminum-magnesium alloy (Al-Mg series).
5052 aluminum tube is a versatile and durable material known for its excellent corrosion resistance, lightweight properties, and good weldability. It belongs to the 5000 series of aluminum alloys, mainly alloyed with magnesium, giving it these beneficial properties. This alloy is not heat treatable but can be strengthened through cold working processes.
5052 Aluminum Tube Marine Applicability: Resistant to seawater corrosion; ideal for use in marine components. Complies with ASTM/AMS standards and is suitable for the shipbuilding and aerospace industries.
5052 Aluminum Tube Features
- Corrosion Resistance: Excellent resistance to corrosion in liquid or gaseous media, suitable for humid or acidic environments, especially in marine settings, making it an ideal choice for seawater applications.
- Strength: Moderate strength with a yield strength of about 193 MPa and an ultimate tensile strength of about 228 MPa.
- Workability: Excellent formability in the fully annealed state, and can achieve high strength through work hardening.
- Weldability: Excellent weldability with various welding methods, including gas welding, arc welding, and resistance welding.
- Machinability: Good machinability, though not suitable for large-scale mass production.
5052 Aluminum Tube Standards and Dimensions
- ASTM Standards: B483 (Seamless), B210 (Drawn).
- AMS Specifications: Complies with aerospace-grade standards.
- Dimensions: Customizable outer diameter (e.g., 6-150 mm), wall thickness (0.5-10 mm), lengths up to 6 meters or more.
- Global Supply: Supports both stock purchasing and custom production, providing free samples and bulk order discounts.
- Quality Assurance: Certified by ISO 9001, AS9100, and meets ASTM B210, AMS-WW-T-700/4 and other international standards, ensuring material performance and traceability.
5052 Aluminum Tube Chemical Composition
The typical composition of 5052 aluminum alloy includes:
- Magnesium (Mg): 2.2%–2.8%
- Chromium (Cr): 0.15%–0.35%
- Copper (Cu): ≤0.1%
- Iron (Fe): ≤0.4%
- Manganese (Mn): ≤0.1%
- Silicon (Si): ≤0.25%
- Zinc (Zn): ≤0.1%
- Aluminum (Al): Remainder
This composition gives it high strength and excellent corrosion resistance.
5052 Aluminum Tube Thermal and Electrical Conductivity
- Thermal Conductivity: ~138 W/m·K (lower than pure aluminum).
- Electrical Conductivity: ~35% IACS (International Annealed Copper Standard).
5052 Aluminum Tube Applications
5052 Aluminum Tube in Marine Applications
5052 aluminum alloy is widely used in the shipbuilding industry due to its outstanding corrosion resistance, excellent workability, and high strength. It is used in hulls, fuel tanks, railings, and other components exposed to marine environments.
- Shipbuilding: Used in hulls, fuel tanks, and other parts exposed to seawater.
- Vessels: Hulls, railings, and fittings.
Hull Structures
5052 aluminum alloy tubes are extensively used in various parts of hull structures, especially in components that require high strength and resistance to seawater corrosion. Its excellent corrosion resistance allows it to be exposed to seawater for extended periods without rusting or corroding, which is crucial for the long-term use of hulls. Commonly used components include:
- Hull Framework: Used in the construction of internal frame structures of the hull to enhance the hull's load-bearing capacity and pressure resistance.
- Hull Support Structures: In high-pressure areas, such as where the hull connects with the vessel's compartments, 5052 aluminum tubes are commonly used in support structures due to their strength and corrosion resistance.
Fuel Tanks and Storage Systems
The excellent corrosion resistance of 5052 aluminum alloy makes it an ideal choice for ship fuel tanks and storage systems. Seawater contains high levels of salt, which can severely corrode metal materials, especially traditional steel, which is prone to rust. However, 5052 aluminum alloy effectively resists saltwater corrosion, ensuring that fuel tanks and storage systems remain corrosion-free during long-term use, maintaining safety and reliability. Specific applications include:
- Fuel Tanks: Used for storing fuel on ships, especially in parts exposed to seawater where long-term resistance to corrosion is necessary.
- Lubricating Oil and Water Tanks: 5052 aluminum tubes also perform well in lubricating oil and water tanks, providing excellent corrosion resistance and durability, thus preventing failures caused by corrosion in the ship's systems.
Railings and Fittings
5052 aluminum alloy is used for railings, handrails, and other fittings exposed to external environments on ships. The marine environment can severely corrode metal fittings, but 5052 aluminum alloy, with its resistance to saltwater corrosion and good machinability, makes it an ideal material for producing these components.
- Ship Railings and Handrails: 5052 aluminum tubes are commonly used in the production of ship railings, handrails, and other components exposed to seawater, particularly in areas near the waterline. The alloy's corrosion resistance ensures its stability during prolonged use.
- Other External Fittings: Such as ship window frames, deck fixtures, etc., 5052 aluminum tubes are often used for making these exterior structural components due to their lightweight and high strength.
Due to its excellent corrosion resistance, good strength, and machinability, 5052 aluminum alloy tubes are indispensable in the shipbuilding industry. Whether in hull structures, fuel tanks, railings, or other components exposed to seawater, it provides long-term durability and reliability. In marine environments, 5052 aluminum alloy effectively enhances the overall performance and safety of ships, reduces maintenance costs, and extends service life.
5052 Aluminum Tube Applications in Other Fields
- Aerospace: Used in aircraft fuel systems, hydraulic lines, fuselage structures, and non-structural components (e.g., interior parts).
- Automotive: Used in fuel lines and structural components that require lightweight materials.
- Industrial Equipment: Used in heat exchangers, pressure vessels, liquid storage tanks, lubrication pipes, deep-drawn low-load parts.
- Consumer Goods: Used in furniture frames, sports equipment, and decorative items.
- Building & Household Items: Handrails, frames, instrument supports, appliance housings, hardware products, and decorative parts.
- Special Applications: Precision tubing used in aerospace high-pressure components (with protective atmosphere annealing process).
Advantages of 5052 Aluminum Tube
- Corrosion Resistance: Excellent corrosion resistance, especially suitable for marine environments.
- Strength-to-Weight Ratio: High strength-to-weight ratio, which is especially advantageous in applications where weight is critical.
- Formability: Easily formed into complex shapes without affecting strength.
- Weldability: Excellent weldability, compatible with various manufacturing processes.
Comparison of 5052 Aluminum with Other Alloys
- Compared to 6061: Lower strength, but better corrosion resistance.
- Compared to 3003: Higher strength, similar formability.
- Compared to 5083: Slightly lower strength, but more cost-effective.
Processing and Surface Treatment of 5052 Aluminum Tube
Processing of 5052 Aluminum Tube
- Heat Treatment: Cannot be strengthened by heat treatment; annealing temperature recommended at 345°C.
- Welding and Polishing: Oxidation should be avoided after welding; polishing can enhance surface finish.
- Excellent plasticity and weldability (recommended ER5356 welding rods), but poor machinability.
- After cold work hardening, plasticity decreases; processing temperature and post-treatment processes should be controlled to reduce hardening tendencies.
Surface Treatment of 5052 Aluminum Tube
- Surface Treatment: Smoothness (standard), anodizing (to enhance corrosion resistance), spray painting, or powder coating.
- Surface Quality: Cracks and corrosion spots are prohibited; localized defects are allowed (depth ≤ 8% of wall thickness, total area ≤ 5%).
Manufacturing Process of 5052 Aluminum Tube
5052 aluminum tubes are typically produced by extrusion and drawing processes. The extrusion process forms the aluminum into tubes, while the drawing process reduces the diameter and wall thickness of the tubes to achieve the required specifications. Annealing processes can relieve internal stress and improve ductility.
Manufacturing Methods
- Extrusion: Suitable for complex cross-sections; cost-effective for mass production.
- Drawing: Produces seamless tubes with small tolerances and smooth surfaces.
- Available Shapes: Seamless (for high-pressure applications) or welded (cost-effective for structural uses).
Limitations of 5052 Aluminum Tube
- Not suitable for high-stress applications that require 6061-level strength.
- Anodizing results are not as effective as 6xxx alloys.
Notes
- Machinability: While 5052 aluminum has good machinability, it is not suitable for mass production.
- Heat Treatment: It cannot be heat-treated; strength can be enhanced through cold working processes.
5052 aluminum tube combines strength, corrosion resistance, and machinability, making it the material of choice for applications in the marine, aerospace, automotive, and industrial sectors.
