5052 Marine Aluminum Plate for Yacht Construction

Last Updated : Aug. 29, 2024

5052 aluminum plate is an ideal choice for yacht construction due to its excellent physical and chemical properties. It not only offers superior strength and corrosion resistance but also boasts outstanding machinability, making it perform exceptionally well in various marine environments.

Yachts come in various types, generally categorized as freshwater and seawater yachts. Aluminum alloy yachts effectively meet the requirements of both types and help reduce the overall weight of the yacht.

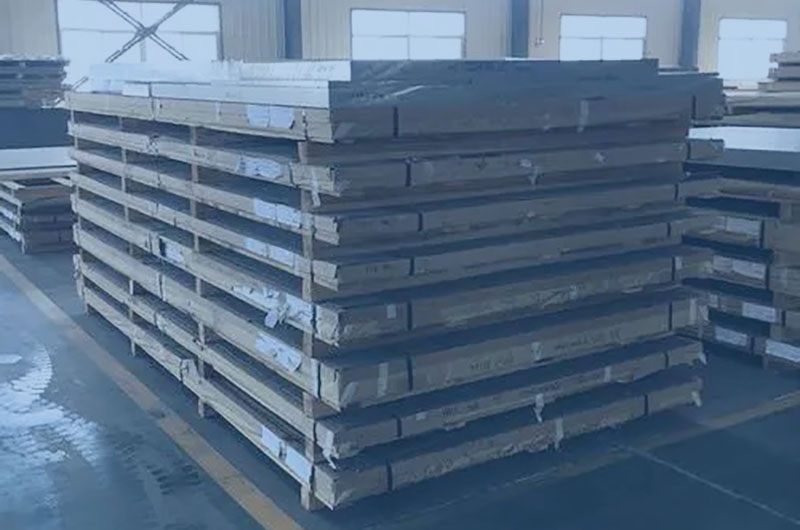

5052 Marine Aluminum Plate

Advantages of Using 5052 Aluminum Plate in Yacht Construction

Hull Structure: 5052 aluminum plate can be used for the yacht's hull structure, providing robust support and effectively resisting marine environment corrosion.
Deck and Superstructure: Due to its excellent corrosion resistance and good machinability, 5052 aluminum plate is commonly used to manufacture the yacht's deck and superstructure components.
Cabins and Storage Spaces: Aluminum plates are used in the yacht’s internal cabins and storage spaces, providing sufficient strength and durability for these areas.
Other Components: This includes railings, guard plates, and decorative parts of the vessel.

Because freshwater is much less corrosive than seawater, small freshwater yachts typically use 5052 aluminum plates as material. Common states of 5052 aluminum plate include 5052H32 and 5052O, known for their superior rust resistance.

Is 5052 Aluminum Suitable for Shipbuilding?

5052 aluminum is highly suitable for shipbuilding. Due to its excellent corrosion resistance, good formability, and high strength-to-weight ratio, 5052 aluminum alloy is commonly used in marine environments. It performs exceptionally well in saltwater environments, making it widely used for ship hulls, decks, and other parts that require corrosion resistance.

What is Marine-Grade Aluminum 5052?

Marine-grade aluminum 5052 is an aluminum alloy particularly suited for use in marine environments.

High Corrosion Resistance: 5052 aluminum alloy contains magnesium, which provides strong resistance to saltwater and other corrosive environments, making it highly suitable for marine and coastal applications.
Good Strength: It has high tensile and compressive strength, capable of withstanding substantial loads and impacts.
Excellent Formability: 5052 aluminum is easy to process and shape, suitable for various complex structures and shapes.
Good Weldability: It can be easily welded, making it suitable for structures requiring welded joints.

5052 aluminum alloy is widely used in ships, marine platforms, automobiles, and other applications that demand high corrosion resistance. Despite its excellent corrosion resistance, regular inspection and cleaning after prolonged exposure to saltwater environments help maintain its good condition. This effectively extends the material's service life, ensuring the yacht's long-term performance and safety.

Mechanical properties of 5052 marine aluminium

Alloy	Temper	Sample temper	Thickness ｍｍ	Tensile strength RｍMPa	Extension strength RP0.2/Mpa	Elongation ％
						A50 ｍｍ	A
5052	O	O	3.00-6.00	175-215	≥65	≥18
			>6.00-50.00	170-215	≥65	≥19
	H111	H111	3.00-6.00	175-215	≥65	≥18
			>6.00-50.00	170-215	≥65	≥19
	H22, H32	H22, H32	3.00-6.00	210-260	≥130	≥10
	H112	H112	6.00-12.50	≥190	≥80	≥7
			>12.50-50.00	≥170	≥70	-

Chemical composition of 5052 marine grade aluminum plate

Element	Chemical composition (%)
Al	Rem
Si	≤0.25
Fe	≤0.50
Cu	≤0.10
Mn	≤0.10
Mg	2.2-2.8
Cr	0.15-0.35
Zn	≤0.10
Note:Each:≤0.05;Total:≤0.15

What is the difference between 6061 and 5052 aluminum for boats?

5052 Aluminum Alloy: Preferably used in marine environments, especially for components with high corrosion resistance requirements.
6061 Aluminum Alloy: Suitable for structural components requiring high strength and load-bearing capacity, but needs more maintenance and protective measures in marine environments.

What is the best grade of aluminum for marine use?

Corrosion Resistance Priority: For applications requiring high corrosion resistance, such as hulls and decks, 5052, 5083, and 5086 aluminum alloys are ideal choices.
High Strength Requirements: For components needing high strength, such as support structures and heavy load-bearing parts, 6061 aluminum alloy is more suitable.

Selecting the appropriate aluminum material based on specific application needs ensures the performance and durability of the vessel.
