Marine Grade Aluminum Trough

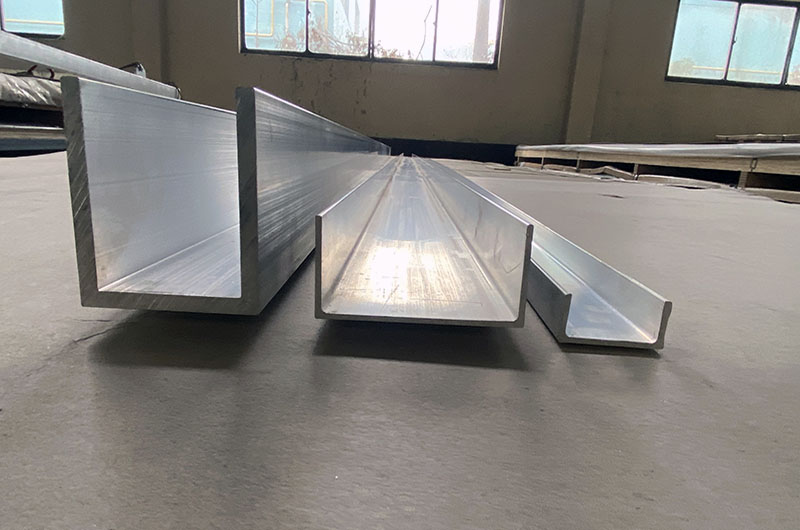

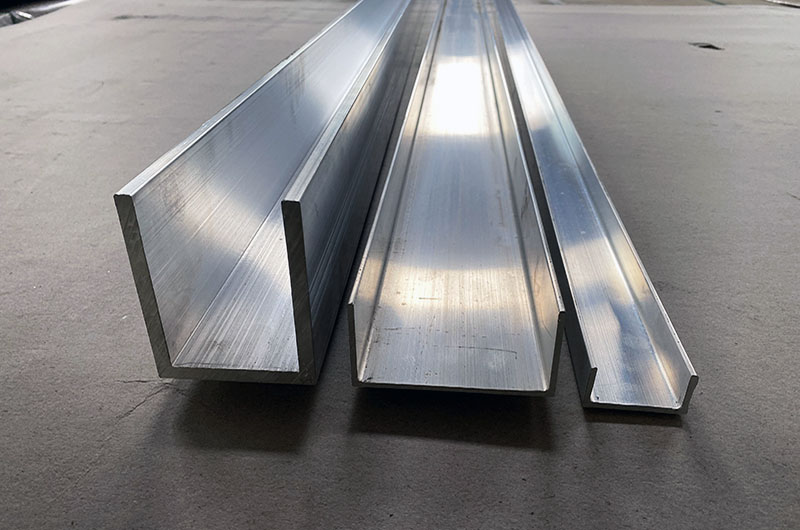

Marine-grade aluminum troughs: A U-shaped or channel profile used in drainage systems, cable management, and structural components in marine environments. They help guide or support materials while resisting corrosion.
Marine-grade aluminum troughs are also used as structural components in various marine facilities. They are commonly employed to support or reinforce other structural elements, contributing to the overall integrity and longevity of the structure. Their U-shaped design allows for easy integration into various applications, while their aluminum construction ensures lightweight strength and long-lasting performance.
Marine Grade Aluminum Trough Specifications

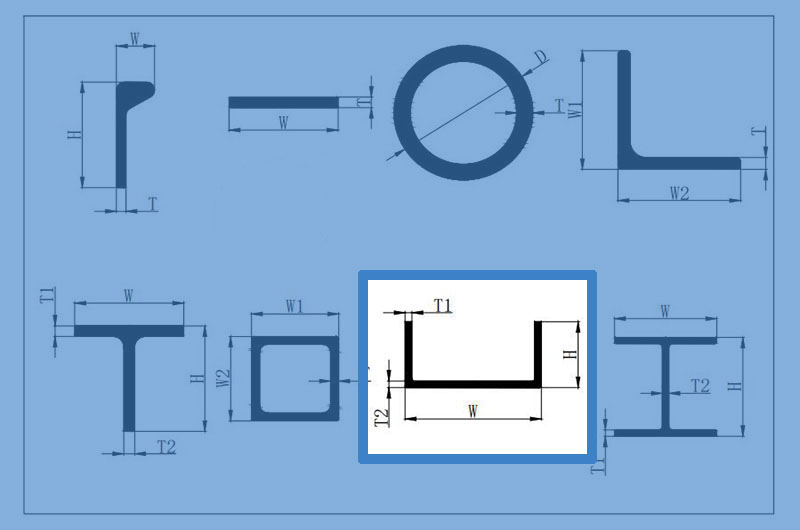

Marine Grade Aluminum Trough Specification Measurement
| Width (W) mm | 25 | 40 | 50 | 100 | 150 | 152.4 | 203.2 |
| Height (H) mm | 25 | 50 | 50 | 50 | 50 | 76.2 | 102.3 |
| Thickness 1 (T1) mm | 3 | 5 | 5 | 5 | 6 | 6 | 9.5 |
| Thickness 2 (T2) mm | 3 | 5 | 5 | 5 | 6 | 6 | 9.5 |
Marine Grade Aluminum Trough Alloy Selection
Marine-grade aluminum troughs are U-shaped or channel profiles specifically designed for harsh marine environments. They are typically made from high-strength, corrosion-resistant aluminum alloys such as 5083, 6061, or 6082, known for their durability and resistance to the corrosive effects of saltwater and other marine elements.
5083 Marine Grade Aluminum Trough
The 5083 marine-grade aluminum trough is a U-shaped profile made from 5083 aluminum alloy, specifically designed for marine environments. This alloy is well known for its excellent corrosion resistance, particularly in seawater and other corrosive environments. It is also valued for its high strength, good weldability, and resistance to stress corrosion cracking.
Characteristics:
- Corrosion Resistance: Excellent resistance to seawater corrosion makes it an ideal choice for marine applications.
- Strength: High strength compared to other non-heat-treatable alloys, maintaining structural integrity under heavy loads.
- Weldability: Excellent weldability, which is crucial for the fabrication and repair of marine structures.
- Machinability: Good formability and machinability, making it easy to shape and process.
Applications: 5083 marine-grade aluminum troughs are commonly used for:
- Structural Support: Providing strong support for marine structures, including hulls, frames, and superstructures.
- Reinforcement: Structural reinforcement in marine and offshore constructions.
6061 Marine Grade Aluminum Trough
The 6061 marine-grade aluminum trough is a U-shaped profile made from 6061 aluminum alloy, a versatile heat-treatable alloy known for its excellent mechanical properties and corrosion resistance. This alloy strikes a good balance between strength, toughness, and machinability, making it ideal for a wide range of marine applications.
Characteristics:
- Corrosion Resistance: Good resistance to marine environments, including saltwater, due to its high silicon and magnesium content.
- Strength: High tensile strength, especially when heat-treated to T6, making it suitable for heavy structural applications.
- Machinability: Excellent machinability, allowing precise fabrication of complex parts.
- Weldability: Good weldability, especially in the T6 condition, but care must be taken to avoid stress cracking.
Applications: 6061 marine-grade aluminum troughs are used for:
- Structural Frames: Providing support during shipbuilding, including hulls, decks, and bulkheads.
- Custom Fabrication: Ideal for manufacturing custom marine structures and components, including ladders, railings, and brackets.
- Equipment Housings: Used in constructing housings and support frames for marine equipment and machinery.
- Architectural Elements: Applied in the design of aesthetic and functional elements on ships and offshore structures.
6082 Marine Grade Aluminum Trough
The 6082 marine-grade aluminum trough is a U-shaped profile made from 6082 aluminum alloy, a heat-treatable alloy known for its high strength, excellent corrosion resistance, and good weldability. This alloy is widely used in applications where strength and corrosion resistance are critical, especially in harsh marine environments.
Characteristics:
- Corrosion Resistance: Strong resistance to seawater and other corrosive elements in marine environments.
- Strength: One of the strongest aluminum alloys, especially in the T6 condition, suitable for load-bearing applications.
- Weldability: Good weldability, though welding may reduce the strength in the heat-affected zone.
- Formability: Good formability, easily bent and shaped to fit custom applications.
Applications: 6082 marine-grade aluminum troughs are used for:
- Heavy Structural Applications: Ideal for use in shipbuilding, offshore platforms, and other marine structures requiring high strength.
- Reinforcing Frames and Supports: Used to reinforce frames, supports, and other critical structures in ships.
Marine Grade Aluminum Trough Chemical Composition
| Element | 5083 Aluminum Alloy | 6061 Aluminum Alloy | 6082 Aluminum Alloy |
| Silicon (Si) | 0.4-0.9% | 0.4-0.8% | 0.7-1.3% |
| Iron (Fe) | ≤ 0.4% | ≤ 0.7% | ≤ 0.5% |
| Copper (Cu) | ≤ 0.1% | 0.15-0.4% | ≤ 0.1% |
| Manganese (Mn) | 0.4-1.0% | ≤ 0.15% | 0.4-1.0% |
| Magnesium (Mg) | 4.0-4.9% | 0.8-1.2% | 0.6-1.2% |
| Chromium (Cr) | 0.05-0.25% | 0.04-0.35% | ≤ 0.25% |
| Zinc (Zn) | ≤ 0.25% | ≤ 0.25% | ≤ 0.2% |
| Titanium (Ti) | ≤ 0.15% | ≤ 0.15% | ≤ 0.1% |
| Other Elements (each) | ≤ 0.15% | ≤ 0.15% | ≤ 0.1% |
| Aluminum (Al) | Remainder | Remainder | Remainder |
Haomei Marine Grade Aluminum Trough Inventory
| Product Name | Specifications (mm) | Brand | Mold No. | Weight per meter (kg/m) | Fixed length(m) | Previous period inventory |
| Trough Aluminum | C25*25*3 | 6082-T6 | YH-HZ-CL25*25*3 | 0.57 | 6 | 105 |
| Trough Aluminum | C39*52.8*4/6 | 6082-T6 | YH-HZ-C39*52.8*4/6 | 1.394 | 6 | 0 |
| Trough Aluminum | C44.5*25.4*3.2 | 6082-T6 | YH-HZ-CL44.5*25.4*3.2 | 0.773 | 6 | 51 |
| Trough Aluminum | C50*25*3 | 6082-T6 | CL50*25*3 | 0.774 | 6 | 199 |
| Trough Aluminum | C50*40*4 | 6082-T6 | YH-HZ-CL50*40*4 | 1.343 | 6 | 26 |
| Trough Aluminum | C50*50*5 | 6082-T6 | YH-HZ-C50*50*5 | 1.919 | 6 | 182 |
| Trough Aluminum | C50.8*50.8*6.4 | 6082-T6 | YH-HZ-CL50.8*50.8*6.4 | 2.43 | 6 | 11 |
| Trough Aluminum | C57.2*31.8*4.8 | 6082-T6 | YH-HZ-CL57.2*31.8*4.8 | 1.451 | 6 | 33 |
| Trough Aluminum | C76.2*44.5*6.4 | 6082-T6 | YH-HZ-CL76.2*44.5*6.4 | 2.652 | 6 | 23.5 |
| Trough Aluminum | C80*100*8 | 6082-T6 | YH-HZ-CL100×80×8 | 5.742 | 6 | 80 |
| Trough Aluminum | C100*25*3 | 6082-T6 | CL100*25*3 | 1.182 | 6 | 102 |
| Trough Aluminum | C100*50*3 | 6082-T6 | CL100*50*3 | 1.59 | 6 | 33 |
| Trough Aluminum | C100*50*5 | 6082-T6 | HZAL-5 | 2.594 | 6 | 97 |
| Trough Aluminum | C101.6*50.8*6.4*7.9 | 6082-T6 | YH-HZ-CL101.6*50.8*7.9*6.4 | 3.677 | 6 | 77 |
| Trough Aluminum | C102*80*10 | 6082-T6 | YH-HZ-C102*80*10 | 6.608 | 6 | 30 |
| Trough Aluminum | C127*50.8*4 | 6082-T6 | YH-HZ-CL127*50.8*4 | 2.407 | 6 | 20 |
| Trough Aluminum | C127*50.8*6.4*7.9 | 6082-T6 | YH-HZ-CL127*50.8*7.9*6.4 | 4.118 | 6 | 10.5 |
| Trough Aluminum | C127*63.5*6.4*9.5 | 6082-T6 | YH-HZ-CL127*63.5*6.4*9.5 | 5.248 | 6 | 70 |
| Trough Aluminum | C152.4*76.2*6.4*9.5 | 6082-T6 | YH-HZ-CL152.4*76.2*9.5*6.4 | 6.26 | 6 | 20.5 |
| Trough Aluminum | C152.4*76.2*9.5*12.7 | 6082-T6 | YH-HZ-C152.4*76.2*9.5*12.7 | 8.546 | 6 | 10 |
| Trough Aluminum | CL203.2*76.2*9.5*12.7 | 6082-T6 | YH-HZ-CL203.2*76.2*9.5*12.7 | 9.858 | 6 | 8 |
