5083 O Aluminum

5083 O aluminum is a special state aluminum material based on 5083 aluminum alloy, formed through an annealing process.

5083-O aluminum alloy is a non-heat-treatable alloy known for its outstanding performance in extreme environments. It is especially noted for its high strength, excellent corrosion resistance, and good weldability, making it the preferred material for various high-demand applications.

5083 O is the annealed (O state) variant of the 5083 aluminum alloy. The 5083 aluminum alloy is renowned for its excellent corrosion resistance, high strength in welded structures, and adaptability to extreme environments. "O" indicates that the alloy has been fully softened through annealing, thereby optimizing its ductility and formability, suitable for cold working applications.

5083 O aluminum belongs to the Al-Mg series alloys, with a magnesium content of 4.0%–4.9%, supplemented by small amounts of manganese, chromium, and other elements that enhance corrosion resistance. The O state (annealed state) eliminates work hardening through recrystallization annealing, homogenizes the grain structure, and significantly improves the material's ductility and plasticity.

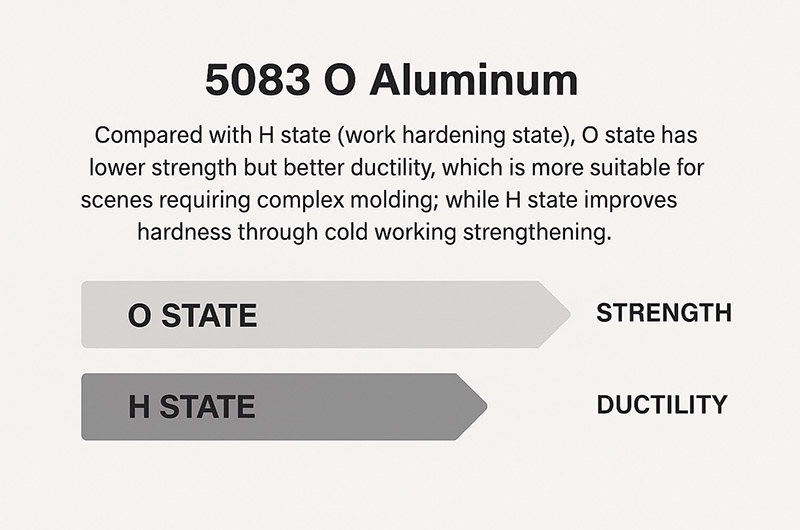

Compared to the H state (work-hardened state), 5083 O aluminum has lower strength but superior ductility, making it more suitable for applications requiring complex forming; the H state improves hardness through cold working.

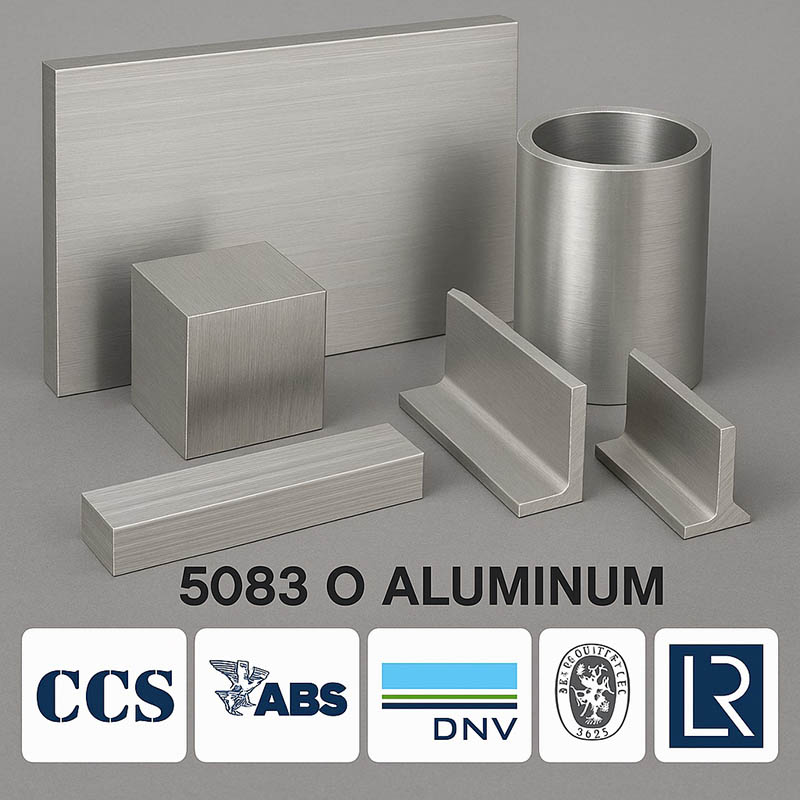

5083 O Aluminum

Due to its excellent corrosion resistance, weldability, and strength, 5083-O aluminum alloy is widely used in the shipbuilding industry. The "O" state indicates a fully annealed state with the highest ductility, particularly beneficial for processing complex shapes in marine structures.

Chemical Composition of 5083 O Aluminum

The typical chemical composition of 5083-O aluminum is as follows:

Magnesium (Mg): 4.0–4.9%
Manganese (Mn): 0.4–1.0%
Chromium (Cr): 0.05–0.25%
Silicon (Si): ≤0.4%
Iron (Fe): ≤0.4%
Copper (Cu): ≤0.1%
Zinc (Zn): ≤0.25%
Titanium (Ti): ≤0.15%
Aluminum (Al): Balance

Mechanical Properties of 5083 Aluminum (O State)

In the annealed "O" state, 5083 aluminum exhibits the following mechanical properties:

Tensile strength: 275–350 MPa
Yield strength: ≥125 MPa
Brinell hardness: 75 HB
Elongation: Generally high, indicating good ductility

Note: These values apply to soft O/H111 materials.

Characteristics of 5083 O Aluminum

Excellent corrosion resistance: 5083-O aluminum alloy has outstanding seawater corrosion resistance, making it very suitable for long-term exposure in marine environments. This corrosion resistance is attributed to its high magnesium content (4.0–4.9%), which enhances its ability to withstand harsh marine conditions.
Excellent weldability: The alloy’s weldability ensures strong and durable joints, which is critical for the structural integrity of ships. TIG/MIG welding using 5183, 5356, or 5556 welding rods performs well, and the post-weld strength is well maintained.
High strength-to-weight ratio: Although lightweight, 5083-O aluminum still has high strength, which helps improve fuel efficiency and payload capacity of vessels.
Good formability: The O state has high ductility, suitable for cold bending, stamping, and deep drawing. The minimum bending radius depends on thickness (for example, a thin sheet bent 180° has a bending radius equal to its thickness). The annealed "O" state offers excellent ductility, allowing the manufacture of complex shapes and structures without cracking, which is very advantageous in shipbuilding processes.
Temperature limitations: Continuous use above 65°C is not recommended, but performance at low temperatures (down to -195°C) is excellent, with increased tensile strength.

5083 O Aluminum

Mechanical Performance of 5083 O Aluminum

High toughness: After annealing, elongation is significantly increased, allowing large deformations (such as bending and stamping) without cracking, suitable for forming needs in ship hulls, pressure vessels, etc.
Fatigue resistance: Although moderate in strength, the performance under cyclic loading is stable, suitable for long-term dynamic load environments.

Corrosion Resistance of 5083 O Aluminum

Marine environment adaptability: Thanks to magnesium content and dense oxide film, it is resistant to pitting and intergranular corrosion in seawater, often used in shipbuilding, offshore platforms, etc.
Atmospheric stability: The oxide film resists common environmental corrosion, ensuring long-term use of outdoor facilities such as bridges and storage tanks.

Processing Performance of 5083 O Aluminum

Advantages in cold forming: Low hardness makes it easy to cut, bend, and deep draw, with minimal risk of cracking or deformation during processing.
Welding compatibility: Supports various processes including arc welding and laser welding, with weld strength reaching over 90% of the base metal, meeting the requirements of welded structures such as pressure vessels.

Applications of 5083 O Aluminum

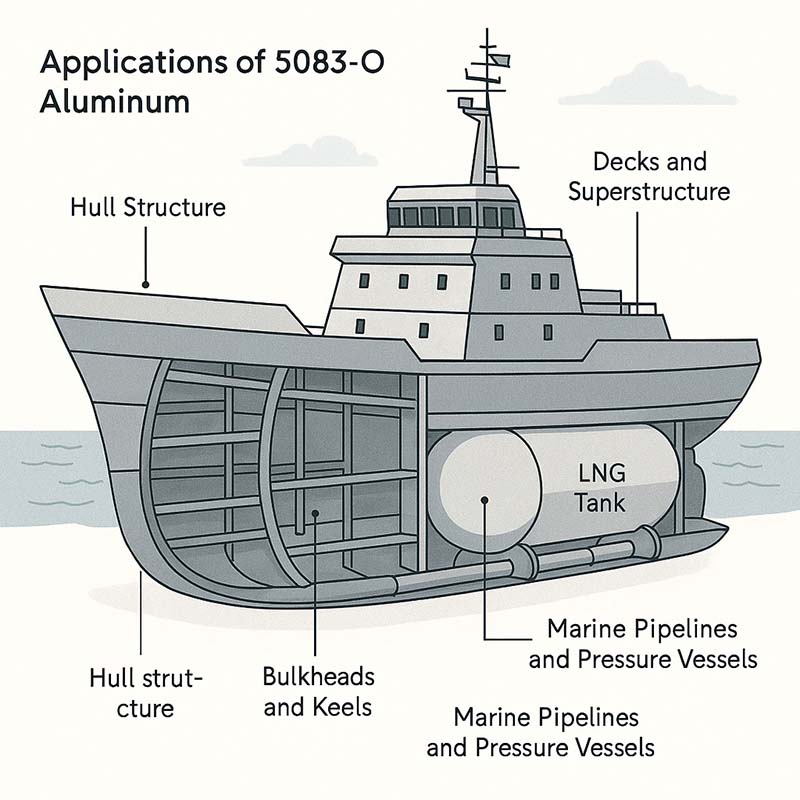

Application of 5083 O Aluminum in the Marine Field

Hull structures: Due to its corrosion resistance and high strength, it is used to manufacture ships and hulls, ensuring their service life and durability.
Decks and superstructures: Used in constructing decks and superstructures where lightweight and corrosion resistance are critical.
Bulkheads and keels: Used for internal structural components such as bulkheads and keels, providing necessary strength and marine environmental resistance.
LNG tanks: Used for building LNG tanks on ships, benefiting from its low-temperature performance and corrosion resistance.
Offshore pipelines and pressure vessels: Its good weldability and pressure resistance make it suitable for marine pipelines and pressure vessels.

5083-O aluminum combines corrosion resistance, strength, weldability, and formability, making it the preferred material for various marine applications, helping to enhance the safety, efficiency, and service life of ships and structural components.

Application of 5083 O Aluminum in the Marine Field

Other Applications of 5083 O Aluminum

Besides its outstanding role in marine applications, 5083-O aluminum is widely used across various industries due to its excellent strength, corrosion resistance, and formability.

Aerospace Industry

5083-O aluminum is used in aerospace for manufacturing parts that require durability and corrosion resistance without heat treatment. Applications include:

Aircraft structures: Used in fuselage panels, wing skins, and bulkheads, where strength-to-weight ratio is critical.
Fuel systems: Due to its fuel corrosion resistance, it is an ideal choice for fuel tanks and pipelines.

Automotive Industry

The alloy's lightweight and high-strength characteristics make it highly suitable for automotive applications, especially for:

Body panels: used for car roofs, mudguards, and underbody shields to reduce vehicle weight and improve fuel efficiency.
Electric Vehicles (EV): used for battery pack side panels, providing protection and ensuring structural integrity.
Safety components: used in crash beams and air tanks due to its energy absorption and corrosion resistance.

Construction and Building

The durability and formability of 5083-O aluminum make it a preferred material in the construction sector:

Building facades: used for architectural panels and cladding due to its aesthetic appeal and resistance to environmental factors.
Roofing and gutters: used in roofing systems and gutters due to its corrosion resistance and ease of installation.

Industrial Applications

In industrial environments, 5083-O aluminum is used for:

Pressure vessels: suitable for chemical and gas tanks owing to its strength and corrosion resistance.
Cryogenic applications: ideal for low-temperature use, maintaining structural integrity under cold conditions.

Defense Sector

The alloy's toughness and corrosion resistance provide advantages in defense:

Armored vehicles: used in vehicle armor to provide protection without adding weight.
Naval vessels: used for hulls and superstructures of naval ships, ensuring durability in marine environments.

5083-O aluminum combines strength, corrosion resistance, and formability, making it a versatile material suitable for multiple industries, including aerospace, automotive, construction, industrial, and defense sectors.

Comparison of 5083 O Aluminum with Other Tempers

5083 H32 Temper: higher strength compared to O temper but with lower ductility.
5083 H116 Temper: optimized for marine applications with enhanced exfoliation corrosion resistance.

Temper Code	Temper Name	Description
O	Annealed	The softest temper, with maximum ductility, suitable for applications requiring high plasticity.
H111	Slightly Work Hardened	Imparts a certain degree of work hardening through forming processes, but with lower hardness than H11 temper, retaining good ductility.
H32	Strain Hardened and Stabilized	Material is strain hardened and stabilized, reaching about one quarter hardness, with good strength and some ductility.

Standards and Equivalent Materials for 5083 O Aluminum

Grade: AA5083, EN AW-5083, AlMg4.5Mn
Specifications: compliant with AS/NZS 1734, ASTM B209, and EN 573 standards

5083-O aluminum alloy is a versatile, corrosion-resistant alloy ideal for applications requiring high formability and weldability. Its annealed condition combines ductility with sufficient strength, making it a preferred choice in marine, transportation, and cryogenic industries.

Manufacturing Considerations for 5083 O Aluminum

Annealing: heat to 350-650°C, then air cool to relieve stress and maximize softness.
Machining: challenging due to high material hardness; prone to adhesion; requires sharp tools and cooling fluids.
Anodizing: feasible but uncommon; can improve surface hardness and corrosion resistance.

Limitations of 5083 O Aluminum

The strength of O temper aluminum is lower than hardened tempers such as H32/H34; temper selection should be based on actual working conditions. For a balance of strength and formability, annealing followed by localized hardening processes can optimize performance.

5083-O aluminum alloy is a widely used alloy combining high strength, excellent corrosion resistance, and good weldability, suitable for various industrial applications.
