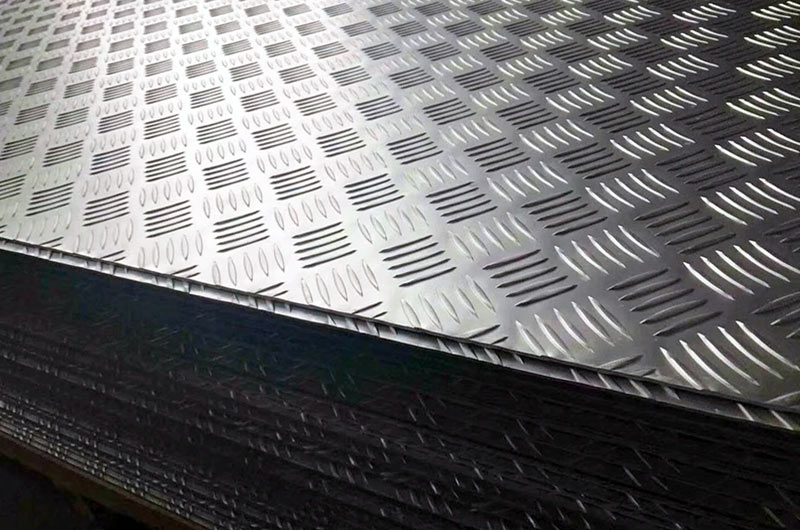

5083 marine grade aluminium checkered tread plate sheet
5083 marine grade aluminum pattern plate is a special type of aluminum alloy plate mainly used in marine environments due to its excellent corrosion resistance and high strength properties.
5083 marine grade aluminum checkered tread plate sheet is known for its superior performance in extreme environments. Not only is this aluminum alloy extremely resistant to seawater and industrial chemical environments, it also has the highest strength of all non-heat treatable aluminum alloys. Although not recommended for use above 65°C, it performs well within the appropriate temperature range.
5083 marine grade aluminum checkered tread plate sheet is highly resistant to corrosion from seawater and industrial chemicals, making it ideal for use in areas such as marine engineering and shipbuilding. It performs well in extreme environments and has the highest strength of any non-heat-treatable aluminum alloy, making it popular in a variety of challenging applications.
5083 marine grade aluminum pattern plate is highly praised for its excellent corrosion resistance, high strength and reliability in extreme environments, and is one of the materials of choice in many important projects and applications.
Marine grade aluminum checkered tread plate classification society certification: CCS, DNV, NK, CCS, ABS, BV, LR, KR
5083 marine grade aluminum checkered tread plate sheet specifications
- Aluminum alloy grade: AA5083, 5083
- Pattern: 3 strips, 5 strips, rhombus.
- Thickness: 0.8 – 12mm
- Width: 400-1220mm
- Length: up to 6000mm
- Length and width tolerance: ± 10%
- Thickness tolerance: ±0.1mm
5083 marine grade aluminum checkered tread plate sheet performance advantages
- The surface is smooth, without cracks, corrosion spots and nitrate traces.
- There is no peeling, bubbles or defects on the surface.
- Excellent processing performance, excellent corrosion resistance, high fatigue strength and high welding performance.
5083 marine grade aluminum checkered tread plate design
- Tread Pattern: A checkered plate design is characterized by a raised pattern of alternating lines or diamonds on the surface of the aluminum plate. This pattern enhances traction and grip, making it suitable for floors, stairs, ramps and other applications where slip resistance is required.
- ENHANCED SAFETY: The raised pattern not only provides traction, but also disperses liquids and debris, reducing the risk of slipping in wet or slippery conditions common in marine environments.
- Aesthetic appeal: In addition to its functional benefits, the checkered board design adds a visually appealing texture to the surface, enhancing the aesthetics of marine structures and equipment.
5083 marine grade aluminum checkered tread plate sheet anti-slip
5083 marine grade pattern plate is an aluminum alloy plate specially designed for ship manufacturing. It features a specially patterned texture designed to ensure anti-slip properties, thereby enhancing the boat's safety in wet environments. During the production process, this pattern is formed by applying a large force to the surface of the aluminum plate through a forming roller. This method ensures the accuracy and consistency of the pattern while maintaining the flatness of the bottom of the sheet, making subsequent embossing of the aluminum sheet impossible.
Because the 5083 marine grade tread plate adopts a diagonal fin structure, the plate has good anti-skid properties. This structural design not only increases the friction on the surface, but also helps with drainage and reduces the possibility of moisture accumulation on the surface, making it safer and more reliable when used outdoors and in humid environments. In addition to the diagonal fin structure, there are many other shapes and patterns that can achieve the same anti-slip properties, which provides more options and flexibility for different application scenarios.
5083 marine grade aluminium checkered tread plate sheet pattern type
5083 marine grade aluminum diamond plate sheet
The "diamond plate" pattern refers to the raised diamond-shaped pattern on the surface, which provides increased traction and slip resistance.
Commonly used in marine applications, such as boat flooring, docks, and ship decks, due to its resistance to saltwater corrosion.
The dimensions and thickness of the sheet would depend on the specific requirements of the application.

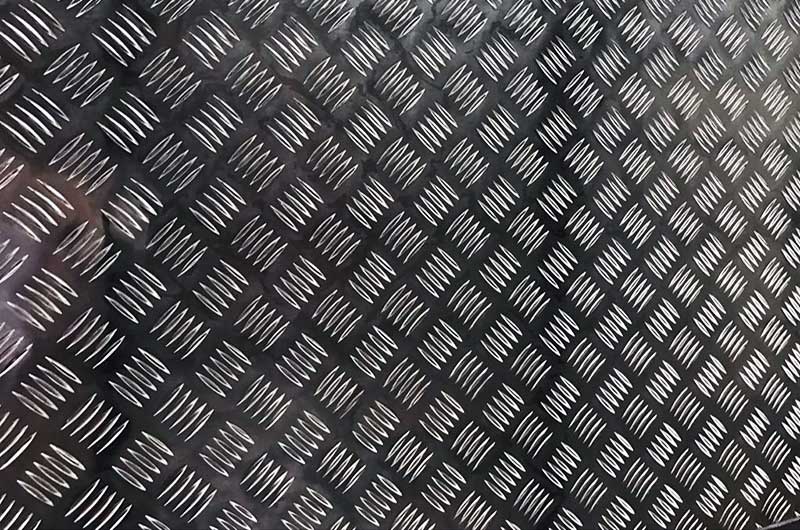

5 bar 5083 marine grade aluminum checkered tread plate sheet
Similar to the diamond plate, this plate is also made from 5083 marine grade aluminum alloy.
The "5-bar" pattern refers to raised bars arranged in a regular pattern on the surface of the sheet. This pattern enhances traction and provides anti-slip properties.
Widely used in marine environments for floors, stairs and other applications where slip resistance is required.
2 bar 5083 marine grade aluminium checkered tread plate sheet
This sheet features a different tread pattern compared to the 5-bar variant.
The "2 bar" pattern consists of two raised bars running parallel to each other across the surface of the sheet.
Provides similar anti-slip properties as the 5-bar pattern but with a different aesthetic and potentially different performance characteristics.
3 bar 5083 marine grade aluminium checkered tread plate sheet
Similarly, this sheet features a tread pattern with three raised bars arranged in parallel across the surface.
Offers anti-slip properties suitable for marine applications, though the performance and appearance may vary compared to the 2-bar or 5-bar patterns.
5083 marine grade aluminium checkered tread plate sheet applications
- Boat Decks and Flooring: 5083 marine grade checkered tread plate sheets are commonly used for boat decks, floors, and gangways due to their slip-resistant properties and corrosion resistance.
- Marine Vessels: These sheets find applications in various marine vessels, including ships, yachts, and offshore platforms, where they serve as structural components, bulkheads, and protective covers.
- Dock and Pier Construction: The material is also utilized in the construction of docks, piers, and marinas, where its durability and resistance to saltwater corrosion are paramount.
- Offshore Structures: In offshore environments, such as oil rigs and drilling platforms, 5083 aluminum checkered tread plate sheets are employed in walkways, stair treads, and other safety-critical areas.
5083 marine grade aluminium checkered tread plate sheet surface finish and treatment
Mill Finish 5083 marine grade aluminium checkered tread plate sheet
Typically, these sheets come with a mill finish, characterized by a smooth, untreated surface straight from the manufacturing process.
Anodized or Coated 5083 marine grade aluminium checkered tread plate sheet
Depending on specific requirements, the sheets can undergo anodizing or coating processes to enhance their corrosion resistance, improve aesthetics, or provide additional protection against environmental factors.
Chemical composition of 5083 marine grade aluminium checkered tread plate sheet
5083 aluminum alloy is mainly composed of aluminum, with magnesium and manganese as the main alloying elements. This combination increases the material's strength and corrosion resistance, making it ideal for marine applications.
| Element | Composition % |
| Al | REM |
| Si | ≤0.4 |
| Cu | ≤0.10 |
| Mg | 4.0-4.9 |
| Zn | ≤0.25 |
| Mn | 0.40-1.0 |
| Ti | ≤0.15 |
| Cr | 0.05-0.25 |
| Fe | ≤0.40 |
| Note: Single≤0.05; Total≤0.15 | |
Mechanical properties of 5083 marine grade aluminium checkered tread plate sheet
| Tensile strength (σb) | 110-136MPa |
| Yield strengthσ0.2 (MPa) | ≥110 |
| Elongationδ10 (%) | ≥20 |
| Elastic modulus (E) | 69.3～70.7Gpa |
| Annealing temperature | 415℃ |
We, Haomei Aluminum, are China's top manufacturers of 5052, 5083, and 5086 marine grade aluminum pattern plates. Aluminum pattern plate products are widely used, especially in the shipbuilding field. Due to its excellent corrosion resistance in seawater, marine grade aluminum pattern plates do not require repainting and other resistance, and can be used with confidence for many years. Therefore, it is widely used in ship structures such as welded structures, storage tanks, and pressure vessels.
